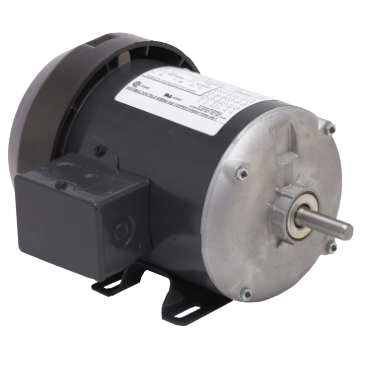

U.S. Motors T12B10N General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T12B10N is a general-purpose single-phase motor designed for efficiency and reliability. This TEFC (Totally Enclosed Fan Cooled) motor operates at a power rating of one-half horsepower and one-quarter horsepower, making it suitable for diverse applications. It features a rigid base mount for stability, ensuring consistent performance in various environments.

• Motor Type: AC Motor
• Voltage Rating: 115 volts
• Speed Options: 1800 rpm and 1200 rpm

Product Highlights

This motor is ideal for use in numerous applications where durable performance is required. The TEFC design provides protection from environmental factors, improving longevity and efficiency, especially in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12B10N
• Minimum Order Quantity: N/A

Technical Specifications

• Enclosure: TEFC
• Frame Size: 56
• Full Load Amps: 7.2/5.0
• Motor Application: General Purpose, Split Phase
• Pulse Speed Options: 1800 rpm, 1200 rpm
• Service Factor: 1
• Insulation Class: B
• Mounting Type: Rigid Base
