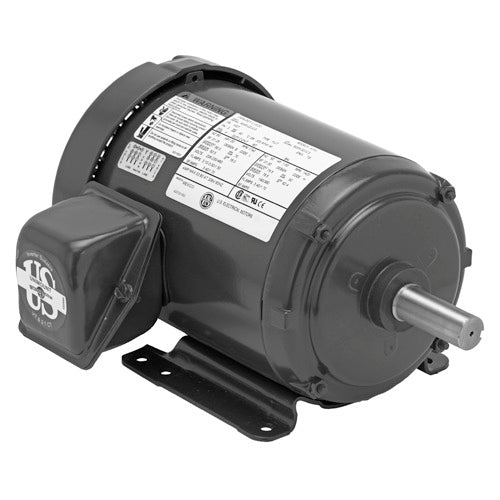

U.S. Motors S5P3A General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors S5P3A is a general purpose motor that operates on three-phase power. This motor features a totally enclosed fan-cooled (TEFC) design, making it suitable for various applications including fans, compressors, and pumps. It has a power rating of five horsepower and operates at a rotational speed of twelve hundred revolutions per minute.

• Powerful five horsepower rating
• Continuous duty design for industrial use
• Operates on 208-230/460 voltage rating

Product Highlights

Designed for reliability in general industrial equipment, this motor ensures efficient performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: S5P3A

Technical Specifications

• Service Factor: 1.15
• Hz: 60 Hz
• Full Load Efficiency: 89.5%
• Voltage Rating: 208-230/460
• Full Load RPM: 1170 RPM
• Enclosure: TEFC
• Frame: 215T
• Insulation: F
• Material: Rolled Steel
• Mounting: Horizontal - Footed
• Phase: Three Phase
• Full Load Amps: 15-14.1/7
• Poles: 6
• Weight: 115.0 LB
• C Dimension: 18.8 in
