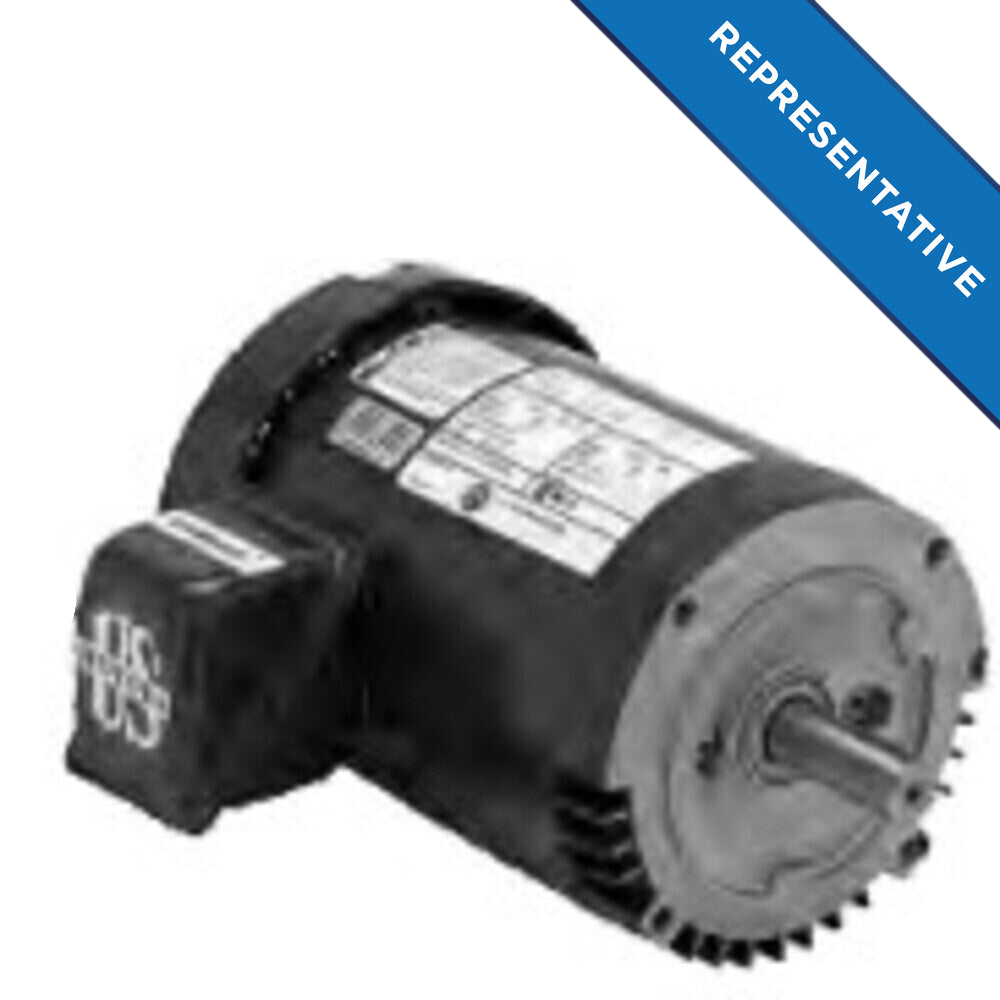

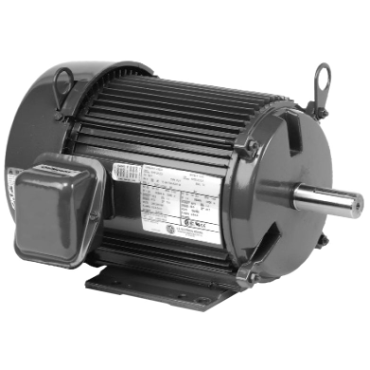

U.S. Motors S10P2AC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors S10P2AC is a general-purpose three-phase motor designed for various applications including pumps, fans, and compressors. This motor operates at ten horsepower with a full load speed of one thousand eight hundred RPM. It supports multiple voltage ratings of two hundred eight to two hundred thirty or four hundred sixty volts, making it versatile for different setups.

• 10 HP, 1800 RPM, Three Phase
• TEFC enclosure for protection against dust and moisture
• Class F insulation with NEMA Premium efficiency

Product Highlights

This motor is built for continuous duty and is suitable for harsh environments. It meets FEMP energy efficiency levels and features a rolled steel frame for durability. It is compliant with NEMA design B performance standards.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: S10P2AC

Technical Specifications

• Poles: 4
• Efficiency Group: Premium Efficient
• Full Load Efficiency: 91.7%
• Full Load Amps: 26.6-24/12
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 215TC
• Voltage Rating: 208-230/460
• Duty: Continuous Duty
