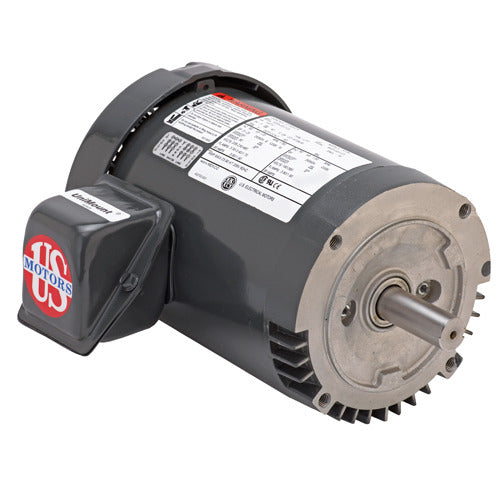

U.S. Motors S10P1ACR General Purpose Three Phase TEFC Horizontal - Footless Motor

Product Description

The U.S. Motors S10P1ACR is a general-purpose three-phase electric motor. It is designed to operate in various industrial applications. This motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring reliable operation in demanding environments.

• Power: Ten horsepower
• Speed: Three thousand six hundred RPM
• Voltage: Supports two hundred eight to four hundred sixty volts

Product Highlights

This motor is suitable for applications like fans, compressors, and pumps. It guarantees continuous operation with a high efficiency rating of ninety percent. The horizontal footless mounting makes it easy to fit into various setups.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 103950538

Technical Specifications

• Full Load Amps: 26.5-23.5/11.7
• Full Load RPM: 3600
• Enclosure: TEFC
• Voltage Rating: 208-230/460
• Motor Application: General Purpose
• Poles: 2
• Enclosure Designation: TEFC
• Mounting: Horizontal - Footless
• Insulation: F
• Hz: 60
• Phase: Three Phase
• Frame: 215TC
• Duty: Continuous Duty
• Full Load Efficiency: 90.2%
• Weight: 120.0 LB
• EAN or UPC: 786382101374
