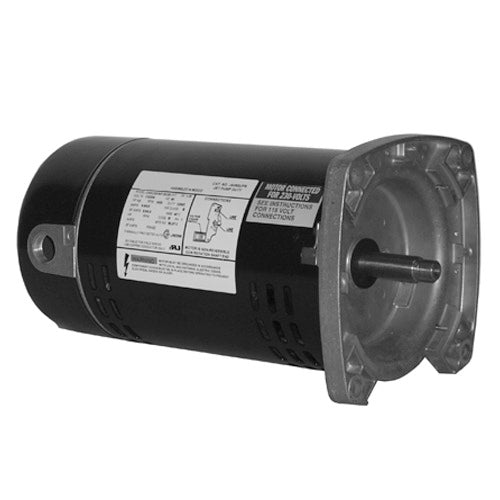

U.S. Motors JS1502-2V Jet Pump Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors JS1502-2V is a jet pump motor designed for efficiency in various pumping applications. This motor operates on a single phase and is rated at one and a half horsepower, making it suitable for residential and small commercial installations.

• 1.5 horsepower for effective pumping
• Single-phase operation with a speed of 3600 rpm
• ODP (Open Drip Proof) enclosure for ventilation

Product Highlights

This motor is ideal for pump applications, particularly in jet pump setups, where reliability and performance are crucial.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: JS1502-2V

Technical Specifications

• Enclosure: ODP
• Full Load Amps: 14.8/7.4
• HP: 1 1/2
• Hz: 60
• Insulation Class: B
• Phase: Single
• Full Load RPM: 3450
• Thermal Protection: Automatic Reset
• Voltage Rating: 230, 115/230, 115
• Drive End Bearing: 6205
• Open End Bearing: 6203
• Frame: 56
• Poles: 2
• Motor Application: Pump Motor, Jet Pump
• Service Factor: 1.5
• Weight: 24.0 LB
• C Dimension: 13.4 in
