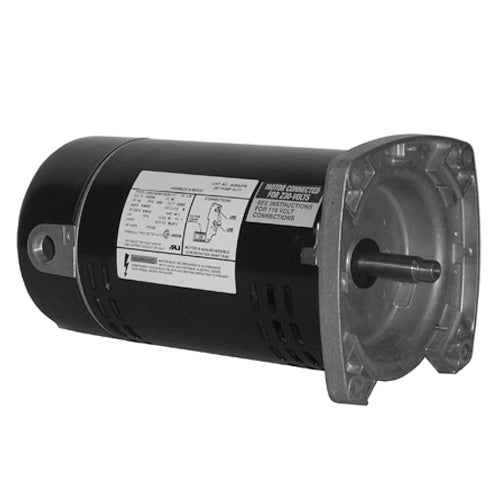

U.S. Motors JS1002-2V Jet Pump Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors JS1002-2V is a jet pump single phase ODP square flange motor designed for pump applications. This motor provides a reliable solution with a power rating of one horsepower and a speed of three thousand six hundred RPM.

• Voltage Rating: 115/230
• Continuous Duty operation
• Automatic Reset Thermal Protection

Product Highlights

The JS1002-2V motor is suitable for various water pumping scenarios, offering efficient operation in residential and light commercial settings.

Product Information

Standard Information

• Brand: U.S. Motors
• Category: AC Motors > Jet Pump Single Phase ODP Square Flange Motor

Technical Specifications

• HP: 1
• Voltage Rating: 115/230
• Full Load Amps: 13.6/6.8
• Poles: 2
• Phase: Single Phase
• Duty: Continuous Duty
• Insulation: B
• Hz: 60
• Frame: 56, 56YZ
• Thermal Protection: Automatic Reset
• C Dimension: 12.9 inches
• Mounting: Square Flange
• Enclosure: ODP
• Service Factor: 1.65
• Weight: 22.0 lbs
• EAN or UPC: 786382038281
