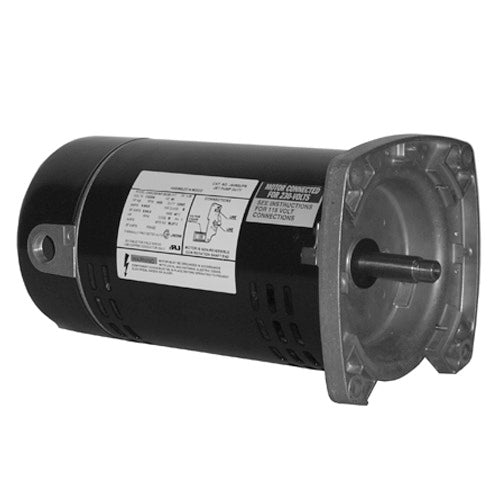

U.S. Motors JJ1502-2V Jet Pump Single Phase ODP J-Face Motor

Product Description

The U.S. Motors JJ1502-2V is a reliable jet pump motor suitable for various applications. Designed for single-phase operations, it delivers one and a half horsepower with a speed of three thousand six hundred RPM. This motor features a J-Face mount and an open drip-proof (ODP) enclosure, ideal for wet or humid environments. With a voltage rating of one hundred fifteen or two hundred thirty volts and a service factor of 1.3, it ensures reliable performance under continuous duty.

• Single-phase operation
• J-Face mounting for easy installation
• Compatible for jet pump applications

Product Highlights

The JJ1502-2V motor is specifically designed for jet pump applications, making it a robust choice for water handling systems.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: JJ1502-2V

Technical Specifications

• Insulation: B
• Voltage Rating: 115/230
• RPM: 3600
• Hz: 60
• Service Factor: 1.3
• Enclosure: ODP
• Mounting: J-Face
• C Dimension: 14.5 inches
• Full Load RPM: 3450
• Full Load Amps: 14/7
• Phase: Single Phase
• Weight: 27.18 LB
