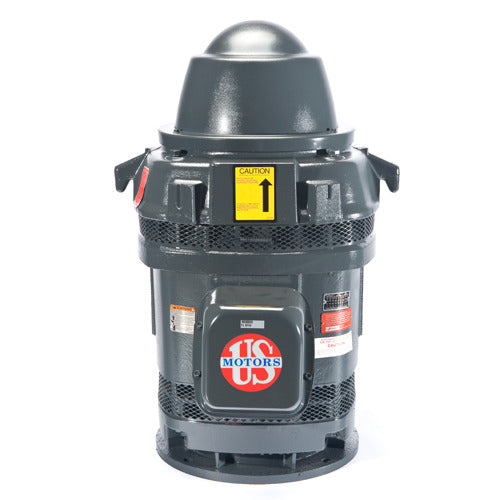

U.S. Motors HO25P2BLG Vertical Hollow Shaft Motor 25 HP 230/460 V

Product Description

The U.S. Motors HO25P2BLG is a three-phase vertical hollow shaft motor with a power rating of twenty-five horsepower. This motor is suitable for a variety of applications, including turbine, mix flow, and propeller pumps. It operates at a voltage of two hundred thirty to four hundred sixty volts, allowing for flexibility in different installations.

• Powerful twenty-five horsepower motor for heavy-duty applications.
• Designed for use with turbine and propeller pumps.
• Meets high efficiency standards with an efficiency rating of ninety-three point six percent.

Product Highlights

This motor features a weather-protected Type I enclosure and is specially designed for high-thrust applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HO25P2BLG

Technical Specifications

• Power: Twenty-five horsepower
• RPM: 1775
• Frame Size: 284TPH
• Voltage: Two hundred thirty / four hundred sixty volts
• Phase: Three-phase
• Enclosure: Weather Protected Type I
• Thrust: Down thrust up to 3300 lbs
• Base Diameter: Sixteen point five inches
• Coupling Height: Twenty-four point seven five inches
• Efficiency: Ninety-three point six percent
