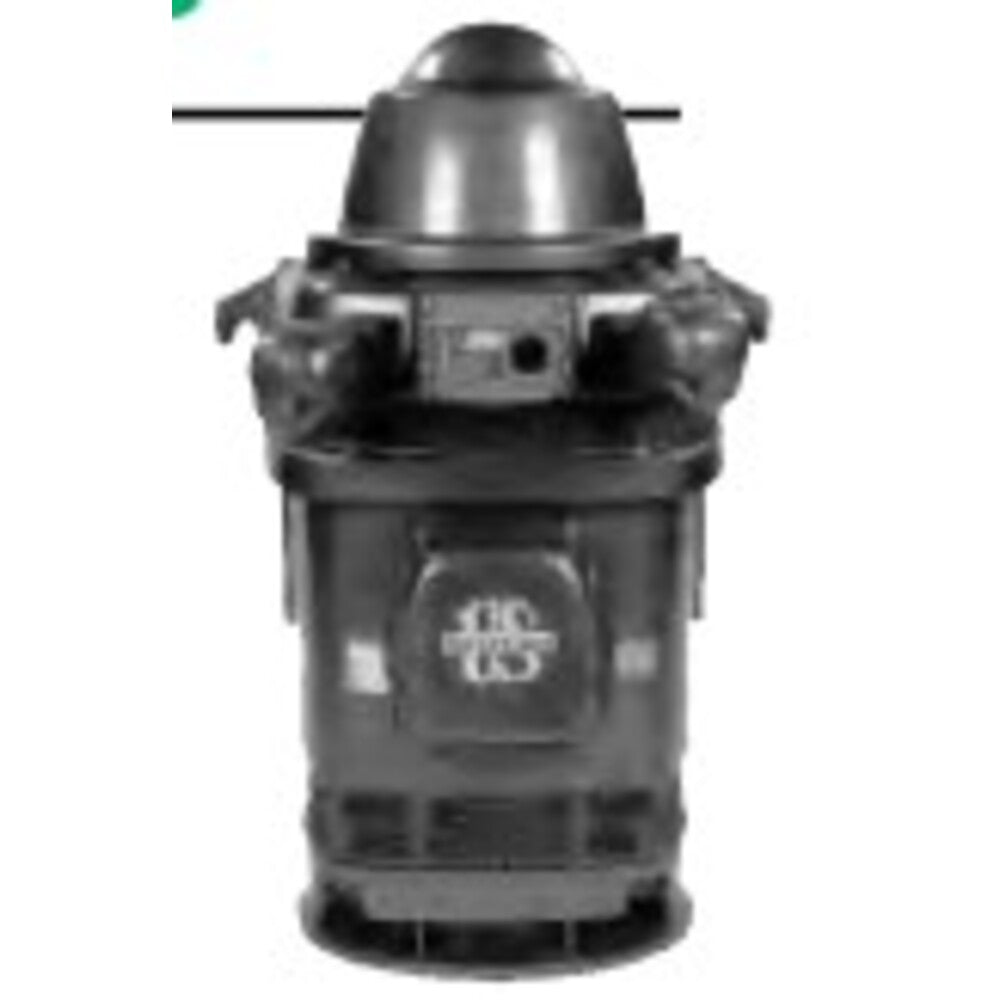

U.S. Motors HO150V2SLGX Pump Motor Three Phase WPI Vertical Motor

Product Description

The U.S. Motors HO150V2SLGX is a three-phase pump motor designed for vertical mounting. This motor delivers a power output of one hundred fifty horsepower and operates efficiently at eighteen hundred RPM. The unit is suitable for continuous duty applications and operates at a voltage rating of four hundred sixty volts.

• Three-phase operation for efficient motor performance
• Weather Protected I (WPI) enclosure design for durability
• High operational efficiency with a full load efficiency of ninety-five point eight percent

Product Highlights

This motor is ideal for use in various pumping applications. Its robust design allows for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Model Number: HO150V2SLGX

Technical Specifications

• Full Load Efficiency: 95.8%
• Enclosure Designation: WPI - Weather Protected I
• Insulation: F
• Full Load Amps: 165
• Hz: 60 Hz
• Frame: H444TP
• C Dimension: 50 in
• Poles: 4
• Phase: Three Phase
• Motor Application: Pump Motor
• Full Load RPM: 1780 RPM
• Mounting: Vertical
• Service Factor: 1.15
• Voltage Rating: 460
• Duty: Continuous Duty
• Weight: 1500.0 LB
• EAN or UPC: 786382106621
