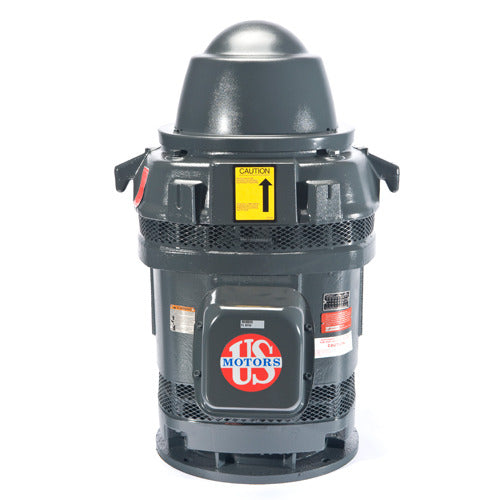

U.S. Motors HO100P2BLG Pump Motor Three Phase WPI Vertical Motor

Product Description

The U.S. Motors HO100P2BLG is a three-phase pump motor designed for vertical mounting. It has a power rating of 100 horsepower and operates at 1800 RPM with a frequency of 60 Hz. This motor is suitable for various applications including turbine, mix flow, and propeller pumps.

• Power: 100 horsepower
• Voltage Rating: 230/460 volts
• Enclosure Type: Weather Protected I (WPI)

Product Highlights

The motor features a continuous duty cycle, ensuring reliable operation. It is designed with a cast iron frame for durability and has a service factor of 1.15, enhancing its performance under varying load conditions.

Product Information

Standard Information

• Mounting: Vertical
• Motor Application: Pump Motor

Technical Specifications

• Phase: Three Phase
• Frame: 404TP
• Enclosure: WPI
• Full Load RPM: 1785
• Efficiency: 95.4%
• Weight: 1100.0 lbs
• Full Load Amps: 228/114
• Insulation Class: F
