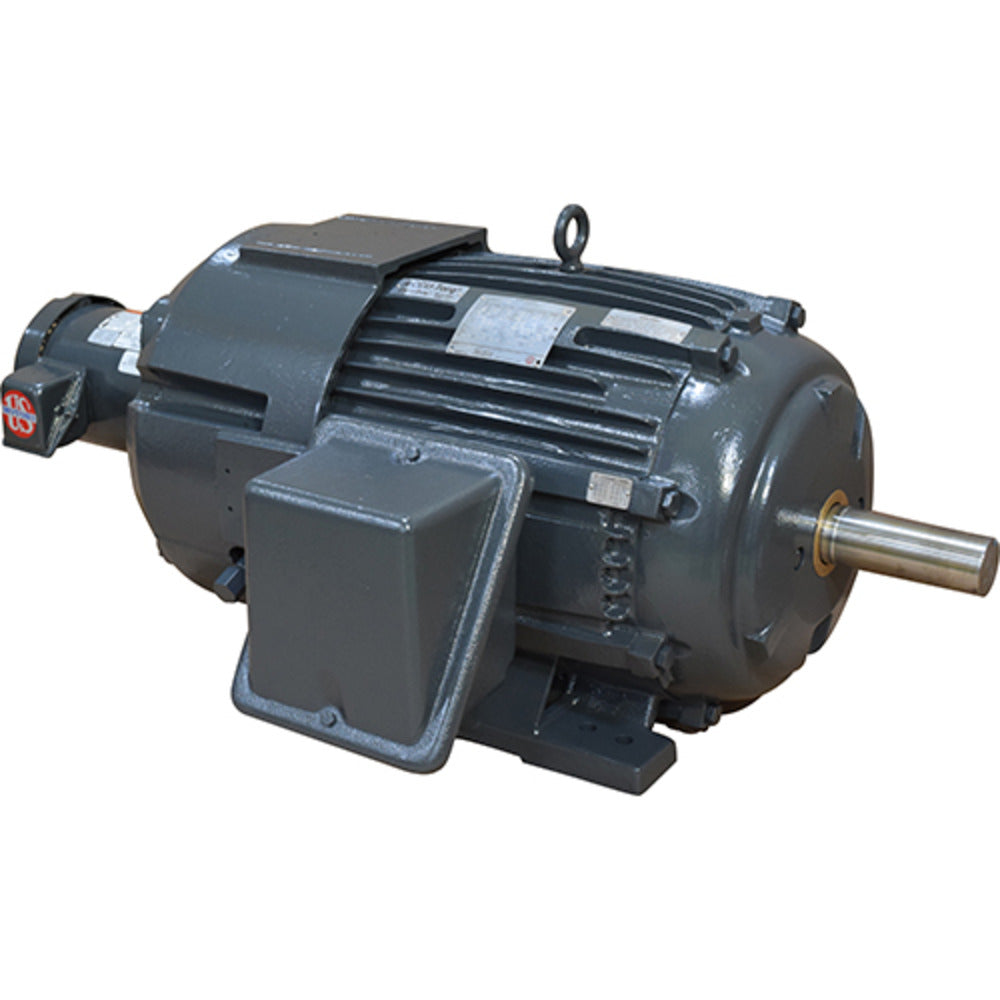

U.S. Motors HD60V2B General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD60V2B is a three-phase motor designed for general purpose applications. It operates at sixty horsepower and has a speed of eighteen hundred revolutions per minute. This motor is suitable for horizontal foot-mounted installations and features a totally enclosed fan-cooled (TEFC) enclosure. The voltage rating is two hundred thirty to four hundred sixty volts, making it versatile for various electrical setups.

• Service Factor: 1.15
• Continuous Duty Rated
• Full Load Efficiency: 95%

Product Highlights

This motor is ideal for a range of industrial applications requiring reliability and efficiency. The cast iron frame ensures durability, while the TEFC design protects against dust and moisture, prolonging the motor's lifespan.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 114638446

Technical Specifications

• Service Factor: 1.15
• Full Load Amps: 137/68
• Hz: 60 Hz
• Full Load Efficiency: 95%
• Insulation: F
• Frame Material: Cast Iron
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Phase: Three Phase
• RPM: 1800 rpm
• Mounting: Horizontal - Footed
• Duty: Continuous Duty
• Poles: 4
• Motor Application: General Purpose
• Voltage Rating: 230/460
• Frame: 364T
• Enclosure: TEFC
• Full Load rpm: 1785 rpm
• Weight: 640.0 LB
• EAN or UPC: 786382124816
