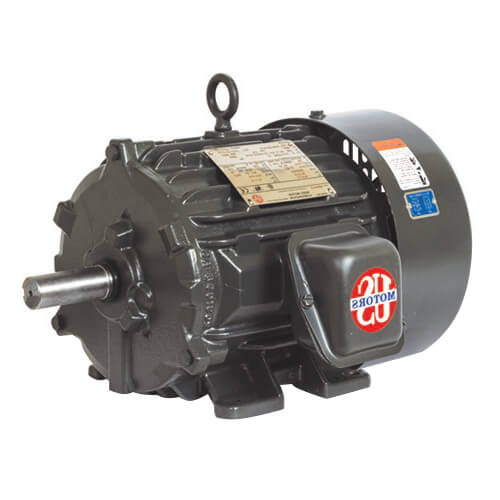

U.S. Motors HD50P2E Hostile Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD50P2E is a three-phase TEFC horizontal footed motor designed for hostile duty applications. It operates at fifty horsepower and eighteen hundred RPM. This motor is suitable for various general-purpose applications, particularly in harsh environments such as oil and gas, pulp and paper, and mining.

• Power: Fifty horsepower
• Phase: Three phase
• RPM: Eighteen hundred

Product Highlights

This motor features a robust design and excellent efficiency. It is suitable for continuous duty and can be mounted horizontally with a rigid base.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HD50P2E

Technical Specifications

• Motor Application: Hostile Duty
• Frame Material: Cast Iron
• Insulation: F
• Voltage Rating: 230/460 & 200/400
• Operating Frequency: 50/60 Hz
• Efficiency: 94.5%
• Full Load Amps: 112/56
• Frame Size: 326T
• Mounting Type: Horizontal - Footed
• Service Factor: 1.15
• Weight: 550 lbs
• Poles: 4
