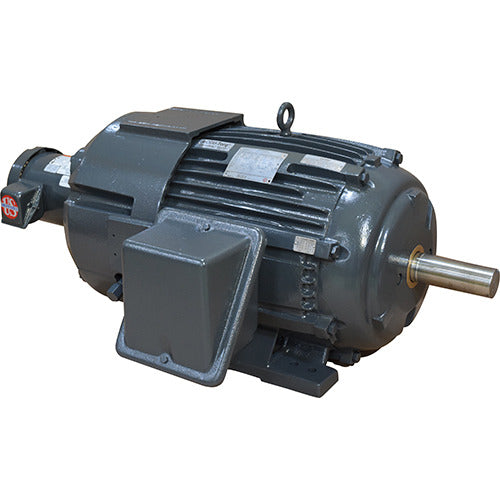

U.S. Motors HD3V2BC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD3V2BC is a three-phase electric motor designed for general purpose applications. It features a TEFC (Totally Enclosed Fan Cooled) design, making it suitable for various industrial environments. This motor operates at a power of three horsepower and can achieve speeds of one thousand eight hundred RPM. Designed for either two hundred thirty or four hundred sixty voltage rating, this motor is versatile in applications.

• TEFC enclosure for protection against dust and moisture
• Effective cooling due to its horizontal – footed mount
• Ideal for continuous duty operations

Product Highlights

This motor is ideal for HVAC systems, pumps, fans, and other industrial machinery requiring reliable and efficient operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: HD3V2BC

Technical Specifications

• Frame: 182TC
• Voltage Rating: 230/460
• RPM: 1800
• Phase: Three Phase
• Enclosure Type: TEFC
• Continuous Duty
• Weight: 100.0 LB
• Full Load Amps: 7.8/3.9
• Full Load Efficiency: 89.5%
