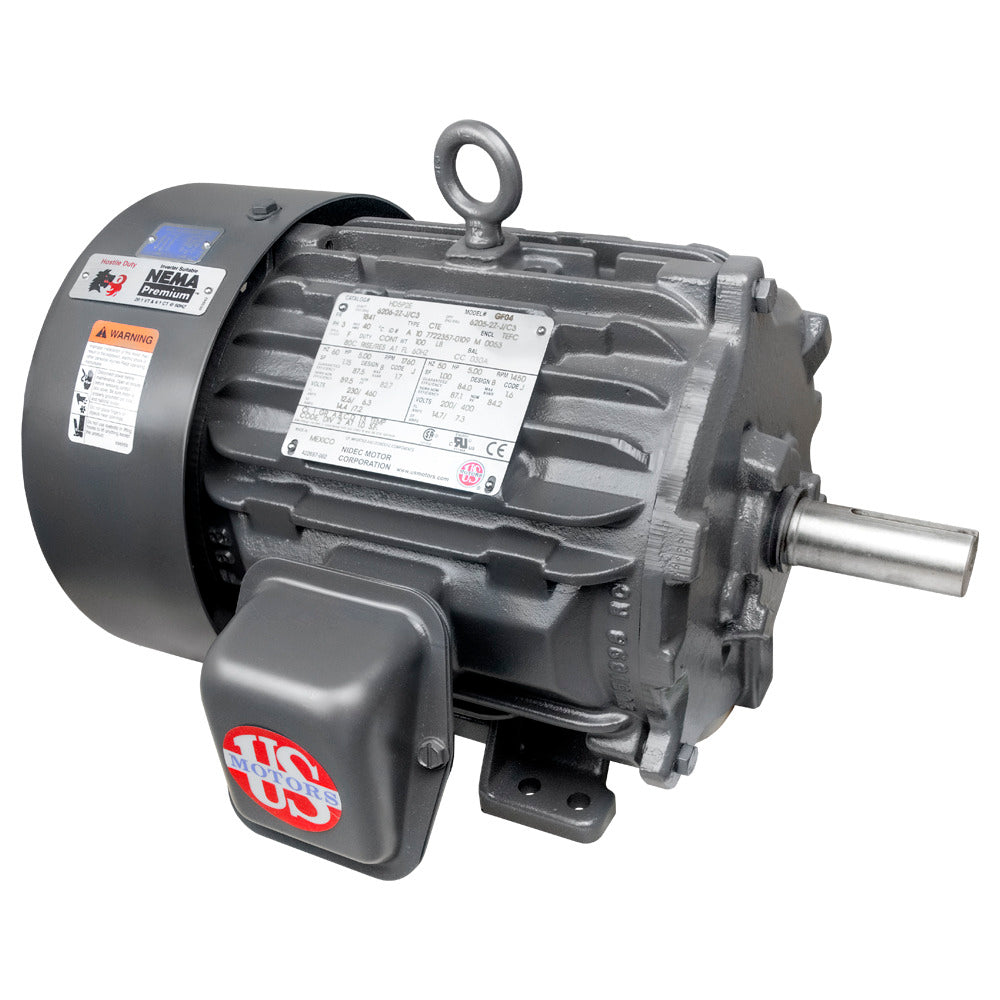

U.S. Motors HD10P1H Hostile Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD10P1H is a three-phase electric motor designed for demanding applications. This motor offers a power output of ten horsepower and operates at a speed of three thousand six hundred RPM. It is built for horizontal mounting with a TEFC enclosure, ensuring durability in hostile environments.

• Ten horsepower motor with three-phase operation
• Designed for horizontal footed mount
• TEFC enclosure protects against dust and moisture

Product Highlights

Ideal for heavy-duty applications in pulp and paper mills, foundries, and chemical plants.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: HD10P1H

Technical Specifications

• Voltage Rating: 200-208
• Full Load RPM: 3515
• Full Load Amps: 27/25.9
• Full Load Efficiency: 90.2%
• Frame Size: 215T
• Insulation Class: F
• Service Factor: 1.15
• Duty Type: Continuous Duty
• Mounting Type: Horizontal - Footed
• Enclosure Type: TEFC
• Weight: 140 LB
• Poles: 2
