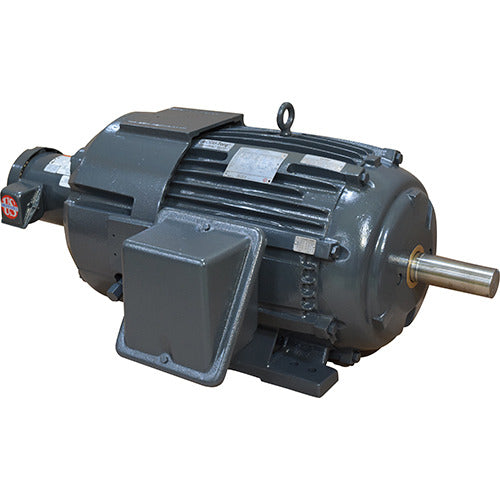

U.S. Motors HD100V2B General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD100V2B is a general-purpose motor designed for three-phase applications. This motor delivers one hundred horsepower and operates at an efficiency of ninety-five point four percent. Its design features a Totally Enclosed Fan Cooled (TEFC) enclosure, making it suitable for a variety of environments.

• Mounting type: Horizontal - Footed
• Voltage rating: Two hundred thirty to four hundred sixty volts
• Continuous duty operation for reliable performance

Product Highlights

The HD100V2B is suitable for general-purpose applications that require durability and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HD100V2B

Technical Specifications

• Mounting: Horizontal - Footed
• RPM: 1800 rpm
• Enclosure: TEFC
• Poles: 4
• Full Load Efficiency: 95.4%
• Phase: Three Phase
• Duty: Continuous Duty
• Full Load Amps: 229/115
• Service Factor: 1.15
• Motor Application: General Purpose
• Frame: 405T
• Voltage Rating: 230/460
• Weight: 980.0 LB
