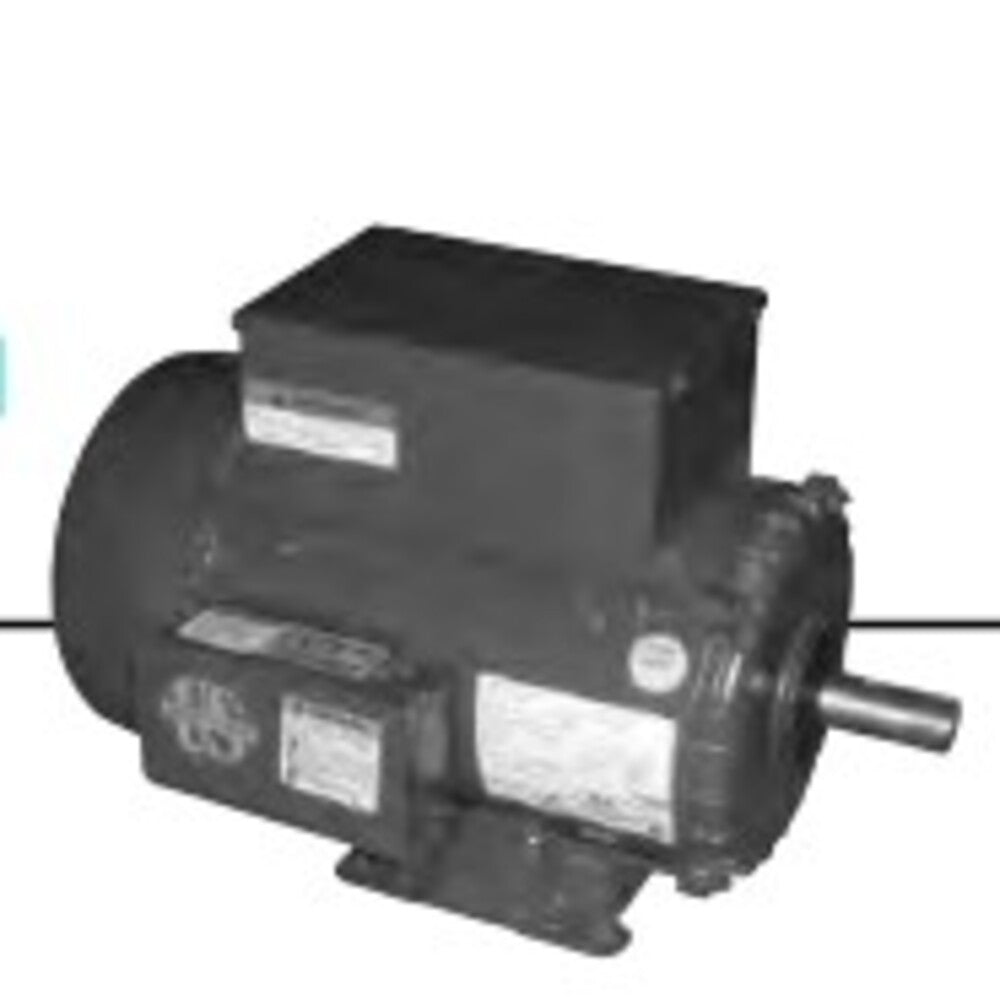

U.S. Motors FD34CM2PC General Purpose Single Phase TEFC Rigid Motor

Product Description

The U.S. Motors FD34CM2PC is a general-purpose single phase TEFC rigid motor with a power rating of three-fourths horsepower. It operates at an efficiency of sixty-nine percent and delivers a full-load speed of one thousand eight hundred RPM. Designed for versatility, this motor is suitable for various applications in HVAC and other machinery.

• TEFC (Totally Enclosed Fan Cooled) design
• Rated for 115/230 volts
• Ideal for continuous duty operations

Product Highlights

This motor is constructed for durability, featuring a rigid mounting and designed for single-phase systems. Its robust design makes it suitable for commercial and industrial use where reliable performance is essential.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD34CM2PC

Technical Specifications

• HP: 3/4
• Frame Size: 56C
• Full Load Amps: 11.4/5.7
• Poles: 4
• Voltage Rating: 115/230
• Full Load RPM: 1725
• Insulation Class: B
• Weight: 30.0 LB
• Duty Type: Continuous Duty
