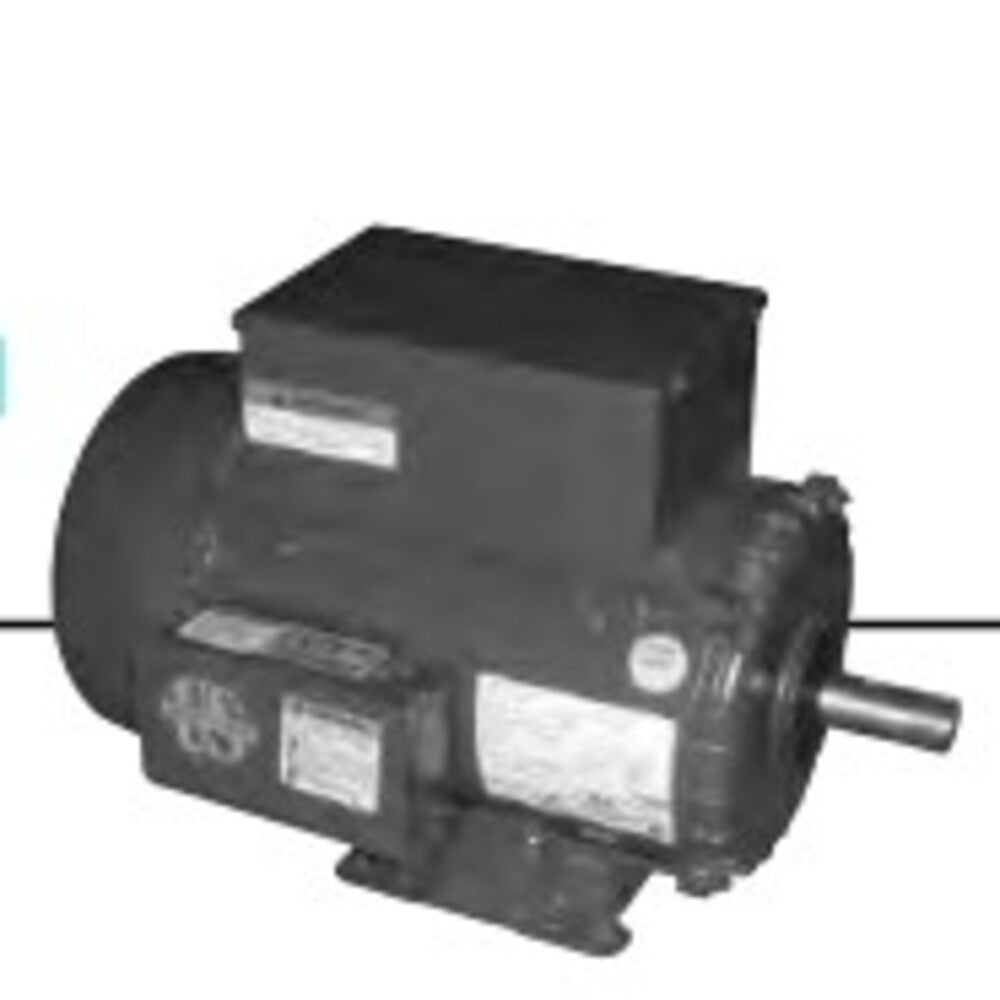

U.S. Motors FD32CPM2PHC General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors FD32CPM2PHC is a general purpose single-phase motor designed for versatile applications. This motor operates at one and a half horsepower with a speed of one thousand eight hundred revolutions per minute. With a voltage rating of one hundred fifteen to two hundred thirty volts and a frequency of sixty hertz, it is suitable for various industrial and commercial uses.

• TEFC enclosure for protection against dust and moisture.
• Rigid base mounting for secure installation.
• Efficiency rating of eighty percent for energy savings.

Product Highlights

Ideal for a variety of tasks, including pumps, fans, and conveyors, this motor provides reliable service in demanding settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD32CPM2PHC

Technical Specifications

• Frame: 56HC
• Full Load Amps: 14.4/8.3-7.2
• Insulation: B
• Phase: Single Phase
• Voltage Rating: 115/208-230
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• RPM: 1800
• Full Load RPM: 1725
• Mounting: Rigid Base
• Motor Application: General Purpose
• Duty: Continuous Duty
• Poles: 4
• Full Load Efficiency: 80%
• Hz: 60
• Thermal Protection: Manual Reset
• Weight: 32.0 LB
• EAN or UPC: 786382117504
