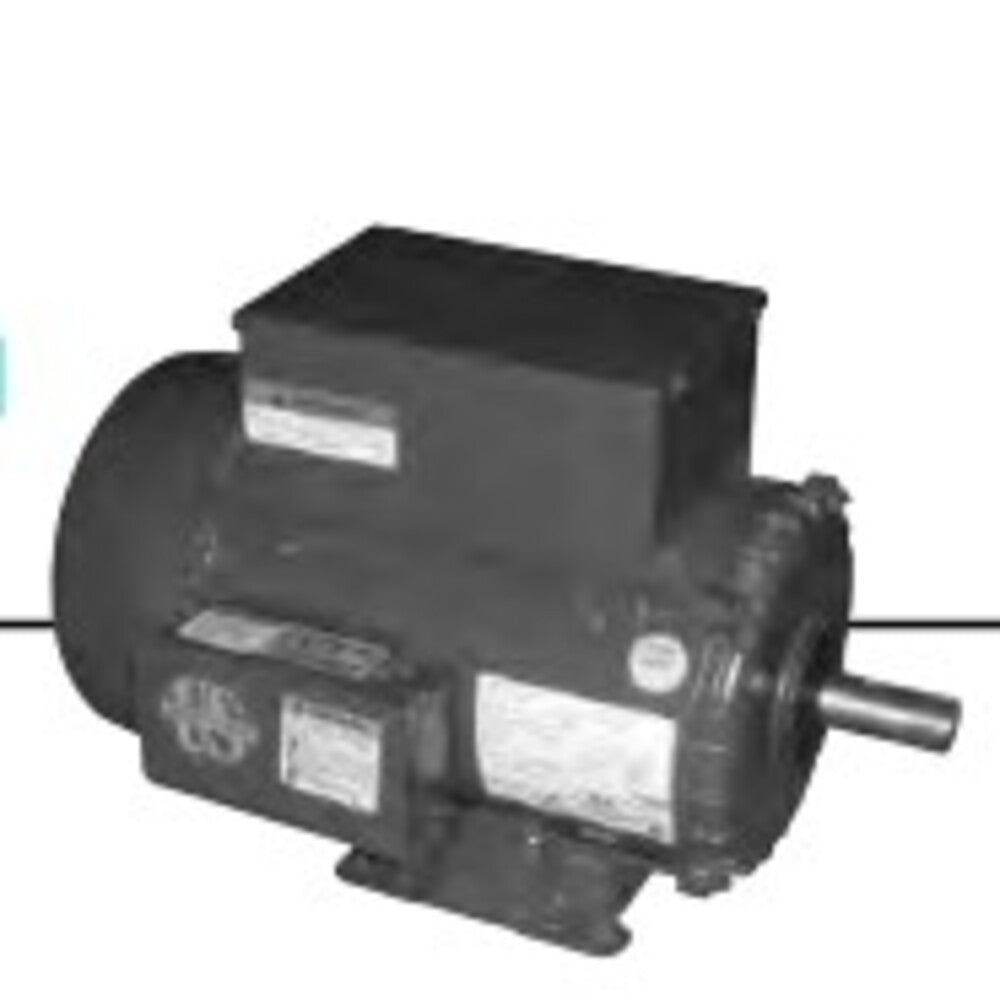

U.S. Motors FD2CM2PHC General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors FD2CM2PHC is a general purpose single-phase motor designed for a variety of applications. It operates at two horsepower with a rated speed of eighteen hundred RPM. This motor is suitable for both commercial and residential use where reliable performance is required. The motor features a C-face mount and is housed in a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and efficiency in various environments.

• Single-phase design for versatile applications
• Operates at two horsepower with eighteen hundred RPM
• TEFC enclosure for protection against dust and moisture

Product Highlights

This motor is ideal for HVAC systems, pumps, and fans. With a voltage rating of 115/230, it provides flexibility in electrical connections. The continuous duty capability allows for consistent performance during extended operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD2CM2PHC
• Current Price: 789.39

Technical Specifications

• Insulation: F
• Duty: Continuous Duty
• Voltage Rating: 115/230
• Motor Application: General Purpose
• Mounting: C-Face
• Enclosure: TEFC
• Full Load Amps: 18.9/9.4
• Hz: 60 Hz
• Thermal Protection: Manual Reset
• Frame: 145TC
• Full Load Efficiency: 81.5 %
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• RPM: 1800 rpm
• Service Factor: 1.15
• Phase: Single Phase
• Poles: 4
• Full Load rpm: 1725 rpm
• Weight: 32.0 LB
• EAN or UPC: 786382117832
