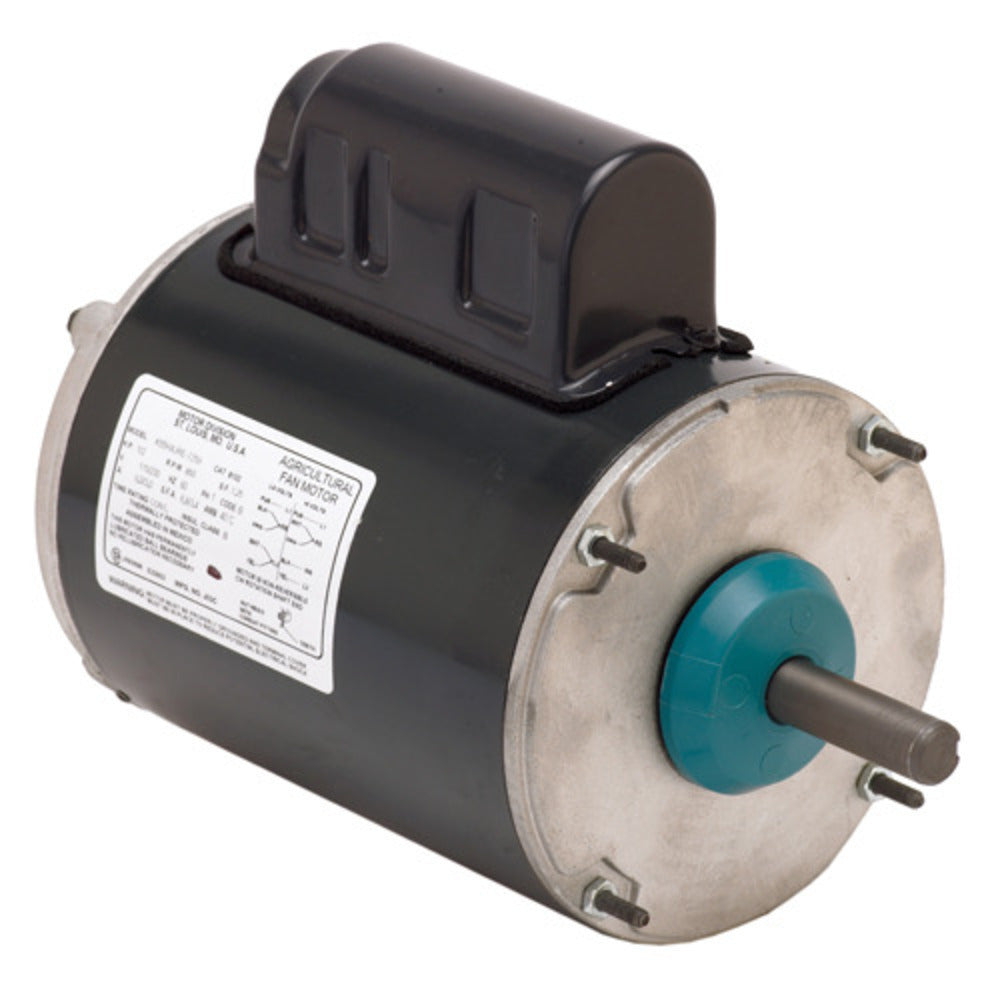

U.S. Motors FD1EA2D General Purpose Three Phase TEAO Rigid Motor

Product Description

The U.S. Motors FD1EA2D is a general purpose three-phase TEAO rigid motor designed for various applications that demand reliability and performance. With a horsepower rating of one and operating at a speed of eighteen hundred revolutions per minute, this motor is well-suited for a range of industrial tasks.

• Voltage rating of 208-230/460 for versatile installation.
• Continuous duty operation to ensure high performance.
• TEAO enclosure providing excellent protection in varied environments.

Product Highlights

This motor features a rigid mount for stable installation and a sturdy design suitable for demanding operational conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD1EA2D

Technical Specifications

• Service Factor: 1.15
• Phase: Three Phase
• Poles: 4
• Insulation: F
• Full Load RPM: 1425 RPM, 1725 RPM
• Full Load Efficiency: 82.5%
• Enclosure: TEAO
• Duty: Continuous Duty
• Weight: 28.6 LB
• Frame: 56H
• Voltage Rating: 208-230/460
