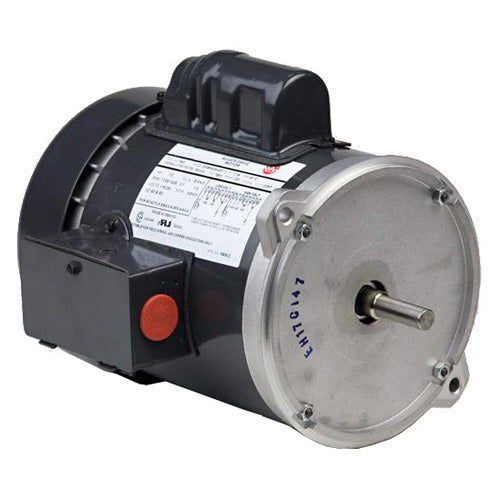

U.S. Motors FD1CM2PZY General Purpose Single Phase TEFC Rigid Motor

Product Description

The U.S. Motors FD1CM2PZY is a general purpose single phase TEFC rigid motor designed for reliability and durability. This motor operates at one horsepower with a speed of one thousand eight hundred RPM, making it suitable for various applications in demanding environments.

• Powerful 1 HP motor
• TEFC enclosure for protection
• Robust rigid mounting design

Product Highlights

This motor provides a continuous duty operation with thermal protection for user safety. It is versatile for various industrial uses, ensuring performance across different tasks.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD1CM2PZY

Technical Specifications

• Voltage Rating: 115/208-230
• Hz: 60 Hz
• Poles: 4
• Frame: 56Y
• Duty: Continuous Duty
• Motor Application: General Purpose
• Thermal Protection: Manual Reset
• RPM: 1800 rpm
• Insulation: F
• Phase: Single Phase
• Full Load Amps: 12.8/6.5-6.4
• Enclosure: TEFC
• Mounting: Rigid
• Weight: 37.5 LB
• EAN or UPC: 786382102326
