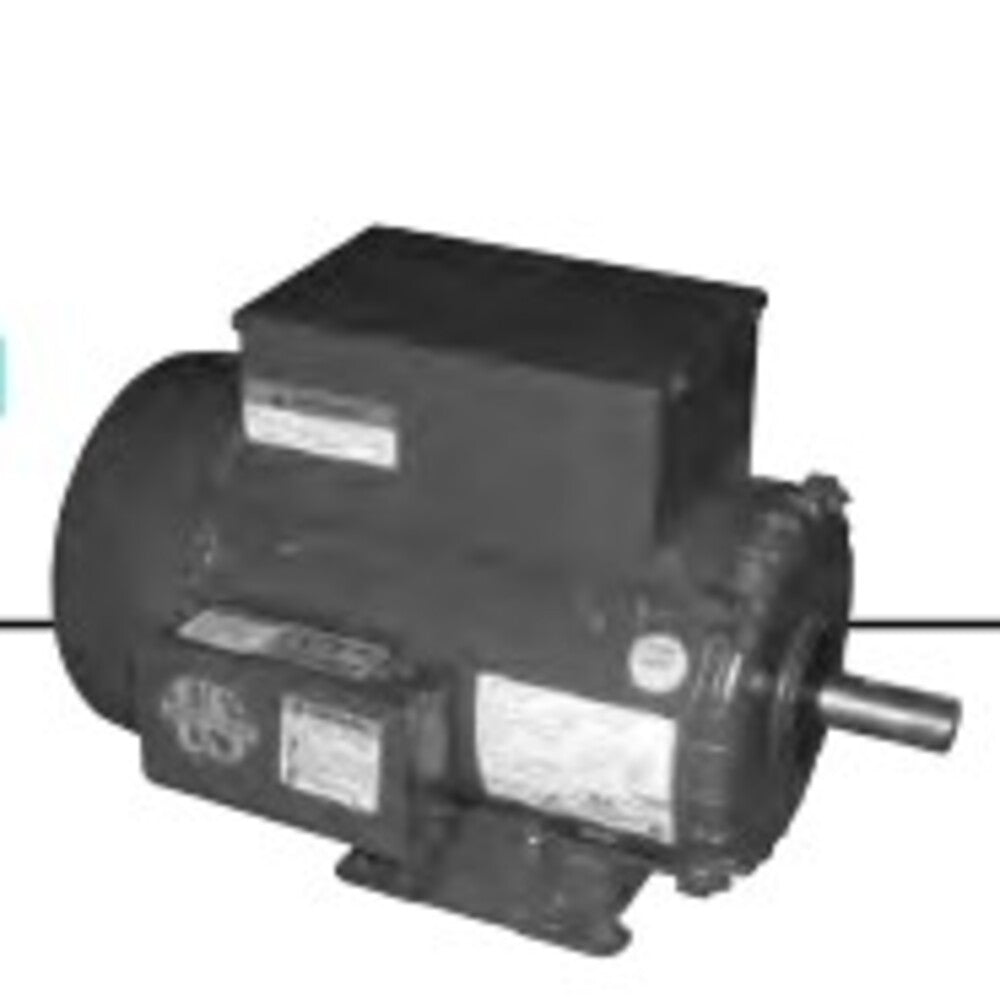

U.S. Motors FD1CM2PCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors FD1CM2PCR is a General Purpose Single Phase TEFC C-Face Motor. It delivers reliable performance with a power rating of one horsepower and operates at one thousand eight hundred revolutions per minute. This motor is suited for various applications, including general purpose and farm duty tasks.

• Power Rating: 1 hp
• Voltage: 115/230 V
• Enclosure Type: TEFC

Product Highlights

This motor is designed with a C-Face mount, offering a sturdy installation option. It operates at a frequency of sixty hertz and features a continuous duty rating, making it a dependable choice for many industrial environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD1CM2PCR

Technical Specifications

• Frame: 56C
• RPM: 1800 rpm
• Phase: Single Phase
• Full Load Amps: 14/7
• Poles: 4
• Insulation Class: F
• Service Factor: 1.15
• Weight: 39 lb
• Thermal Protection: Manual Reset
