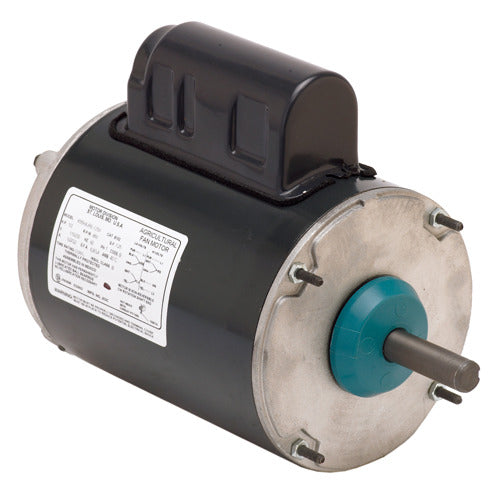

U.S. Motors FD1CA2J9 General Purpose Single Phase TEAO Resilient Motor

Product Description

The U.S. Motors FD1CA2J9 is designed for general purpose applications. This single-phase motor features a TEAO enclosure, providing protection from the environment while ensuring efficient operation. It operates at one horsepower with a speed of 1800 rpm, making it suitable for various tasks including agricultural fan operations.

• Full load amps rating of 10.9/5.4-5.4
• Continuous duty design
• Automatic reset thermal protection

Product Highlights

Reliable performance for agricultural and general applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD1CA2J9

Technical Specifications

• HP: 1
• RPM: 1800
• Duty: Continuous Duty
• Frame: 56
• Phase: Single Phase
• Poles: 4
• Voltage Rating: 115/208-230
• Insulation: B
• Service Factor: 1.15
• Mounting: Resilient Base
• Weight: 25.0 LB
