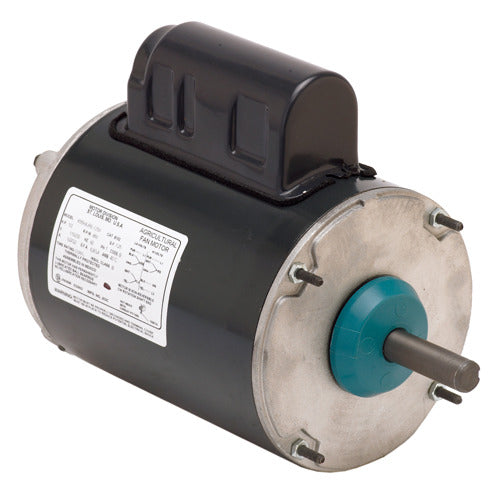

U.S. Motors FD1CA2J General Purpose Single Phase TEAO Rigid Motor

Product Description

The U.S. Motors FD1CA2J is a general-purpose single-phase TEAO rigid motor designed to provide reliable performance in various applications. This motor operates at one horsepower and can achieve an impressive speed of eighteen hundred revolutions per minute. This design is ideal for systems requiring constant power delivery and durability.

• Single-phase design for efficient power usage
• Totally enclosed air-over (TEAO) for enhanced protection
• Suitable for applications requiring a rigid mount

Product Highlights

Engineered for continuous duty, this motor is perfect for applications in HVAC, agricultural equipment, and various industrial settings.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: FD1CA2J

Technical Specifications

• Voltage Rating: 115/208-230
• Full Load Amps: 10.9/5.4-5.4
• Operating Frequency: 60 Hz
• Frame Size: 56
• Weight: 34.4 LB
• Poles: 4
• Service Factor: 1.15
• Enclosure Type: TEAO - Totally Enclosed Air Over
