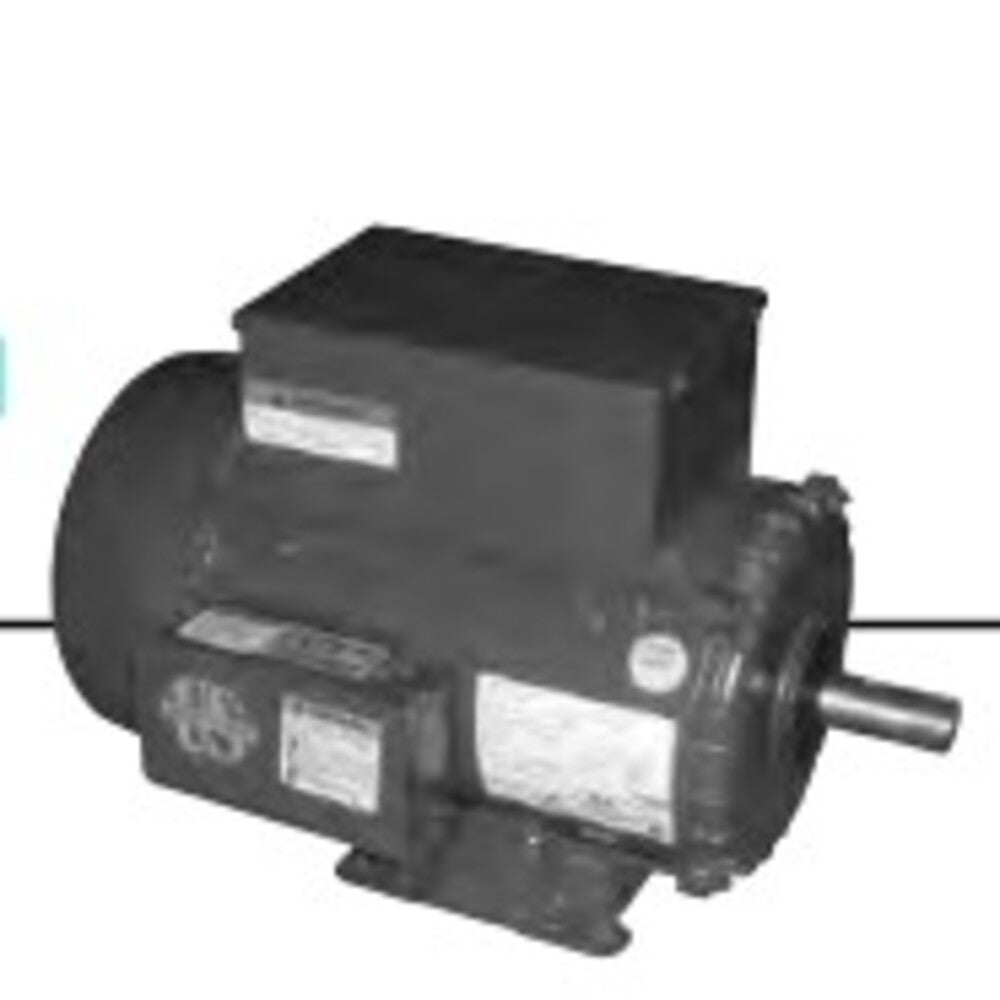

U.S. Motors FD13CM2PC General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors FD13CM2PC is a general-purpose single-phase TEFC C-face motor designed for various applications. With a power rating of one-third horsepower and a speed of one thousand eight hundred revolutions per minute, this motor efficiently meets the demands of many industrial and commercial applications.

• Voltage: 115/230
• Mounting Type: C-Face
• Full Load Amps: 6.6/3.3

Product Highlights

This motor is built for continuous duty service and features a totally enclosed fan-cooled design. The manual reset thermal protection ensures safety during operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 113631556

Technical Specifications

• Insulation: B
• Frequency: 60 Hz
• Frame Size: 56C
• Phase: Single Phase
• Full Load RPM: 1725 RPM
• Service Factor: 1.15
• Weight: 21.0 LB
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Duty: Continuous Duty
• C Dimension: 10.8 in
• Voltage Rating: 115/230
• Full Load Efficiency: 59.5%
• Poles: 4
