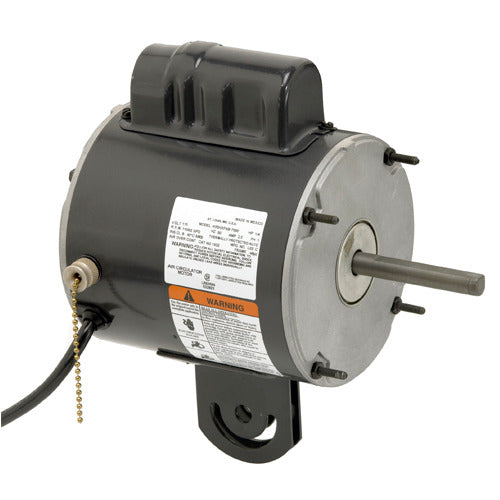

U.S. Motors FD13AA2P4Z9 General Purpose Single Phase TEAO Resilient Motor

Product Description

The U.S. Motors FD13AA2P4Z9 is a resilient mount motor designed for general purpose applications. This single-phase motor operates at 1/3 horsepower and features an 1800 RPM speed. It is built with a TEAO (Totally Enclosed Air Over) enclosure, which ensures reliable performance in various conditions.

• General purpose motor application
• 1/3 HP with 1800 RPM
• Voltage rating of 115/230

Product Highlights

This motor is suitable for various tasks across agricultural and other fan systems, ensuring high efficiency and ease of installation due to its cradle mount.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD13AA2P4Z9

Technical Specifications

• Voltage Rating: 115/230
• HP: 1/3
• RPM: 1800
• Hz: 60
• Duty: Continuous Duty
• Frame: 48Z
• Phase: Single Phase
• Poles: 4
• Efficiency: 63.6%
• Weight: 19.0 LB
• Full Load Amps: 3.8/1.9
