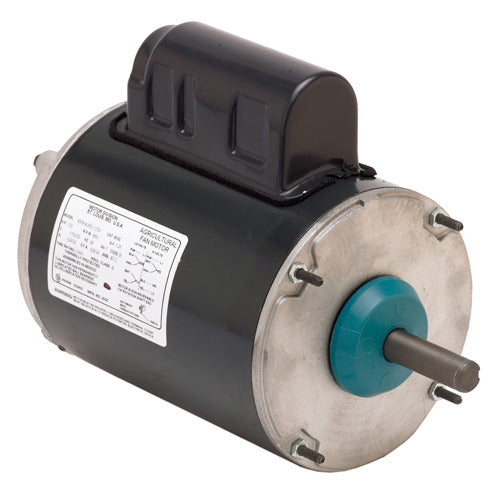

U.S. Motors FD12BA2P General Purpose Single Phase TEAO Rigid Base Motor

Product Description

The U.S. Motors FD12BA2P is a general-purpose motor designed for various applications. This single-phase motor offers 1/2 horsepower and operates at a speed of 1800 RPM. It features a rigid base mount and a TEAO enclosure, making it suitable for agricultural fans and other similar applications.

• 1/2 horsepower output
• Single-phase operation at 1800 RPM
• TEAO enclosure for durability

Product Highlights

This motor is ideal for continuous duty operations, providing reliable power for agricultural and industrial use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD12BA2P

Technical Specifications

• Full Load Amps: 8/4
• Voltage Rating: 115/230
• Frame Size: 56
• Poles: 4
• Duty Cycle: Continuous Duty
• Insulation Class: B
• Service Factor: 1.25
• C Dimension: 11.3 inches
