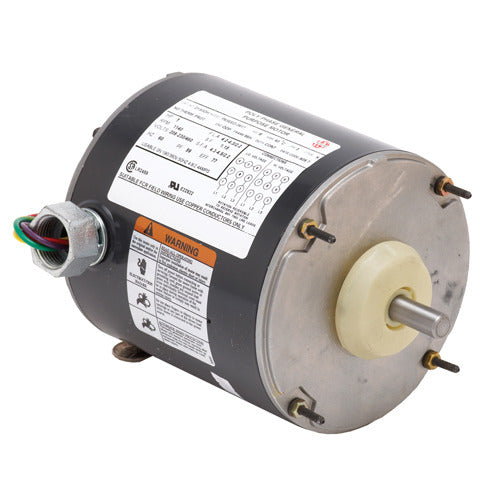

U.S. Motors FD12AM2P4ZRS General Purpose Single Phase TEAO Band Motor

Product Description

The U.S. Motors FD12AM2P4ZRS is a general purpose single phase TEAO band motor designed for various applications. It operates at one-half horsepower and a speed of one thousand eight hundred rpm. Built with a TEAO enclosure, this motor is ideal for environments where dust and moisture exposure is a concern.

• Single phase and high efficiency motor
• TEAO enclosure for enhanced protection
• Suitable for general purpose applications

Product Highlights

This motor is robust and suitable for use in industrial and commercial settings, providing reliable performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD12AM2P4ZRS

Technical Specifications

• Power: 1/2 HP
• Speed: 1800 rpm
• Voltage Rating: 115/230
• Frame Size: 48YZ
• Enclosure Type: TEAO
• Full Load Amps: 5/2.5
• Full Load Efficiency: 77.3%
• Service Factor: 1
• Duty Type: Continuous Duty
