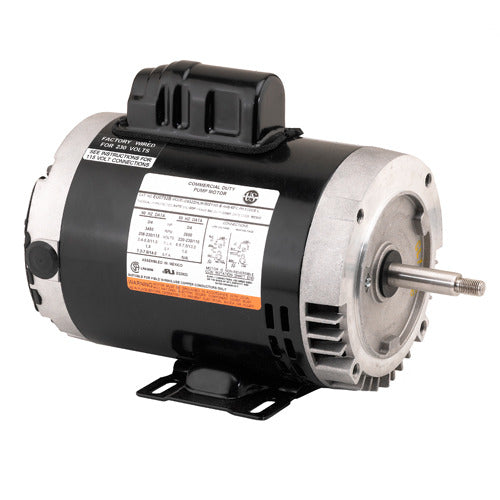

U.S. Motors EU2002B General Purpose Single Phase ODP J-Face/Rem Base Motor

Product Description

The U.S. Motors EU2002B is a general purpose single phase motor designed for various applications. With a power rating of two horsepower and a speed of three thousand six hundred rpm, this motor is built for efficiency, reliability, and ease of installation.

• 2 HP power rating
• 3600 RPM speed
• Single phase operation

Product Highlights

The EU2002B motor features automatic reset thermal protection and is designed for continuous duty usage. It operates effectively at multiple voltage ratings, including one hundred fifteen, two hundred eight, two hundred thirty, and others.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU2002B

Technical Specifications

• Frame: 56, 56J
• Insulation: B
• Full Load RPM: 2850 RPM, 3450 RPM
• RPM: 3600 RPM
• C Dimension: 12.8 inches
• Full Load Amps: 19.6/10.7-9.8
• Voltage Rating: 230, 115, 110, 220, 208, 115/208-230 & 110/220
• Service Factor: 1.21
• Motor Application: General Purpose
• HP: 2
• Enclosure Designation: ODP - Open Drip Proof
• Poles: 2
• Phase: Single Phase
• Enclosure: ODP
• Mounting: J-Face, J-Face/Rem Base
• Hz: 60 Hz, 50/60 Hz
• Thermal Protection: Automatic Reset
• Duty: Continuous Duty
• Weight: 33.0 LB
• EAN or UPC: 786382054526
