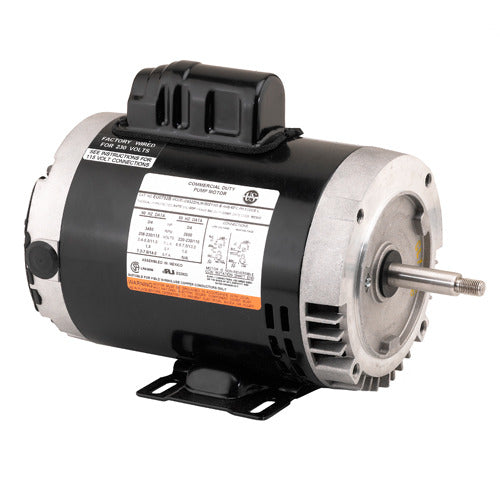

U.S. Motors EU1502 General Purpose Single Phase ODP J-Face Motor

Product Description

The U.S. Motors EU1502 is a general purpose single phase ODP J-Face motor. This motor operates at one and a half horsepower and reaches speeds of 3600 RPM. It is suitable for a variety of applications, particularly where centrifugal pumps are utilized, as it allows direct mounting of the pump impeller on the motor shaft.

• Rated for single phase operation
• Features ODP (Open Drip Proof) enclosure
• Equipped with double shielded bearings

Product Highlights

This motor is designed for reliable performance in environments with minimal dirt and moisture. Key features include class F insulation and a rolled steel frame.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU1502

Technical Specifications

• Service Factor: 1.31
• Horsepower: 1.5 HP
• Voltage: 115/208-230
• Frame Size: 56J
• Full Load Amps: 18.2/9.2-9.1
• Insulation Class: B
• RPM: 3600
• Enclosure Type: ODP
