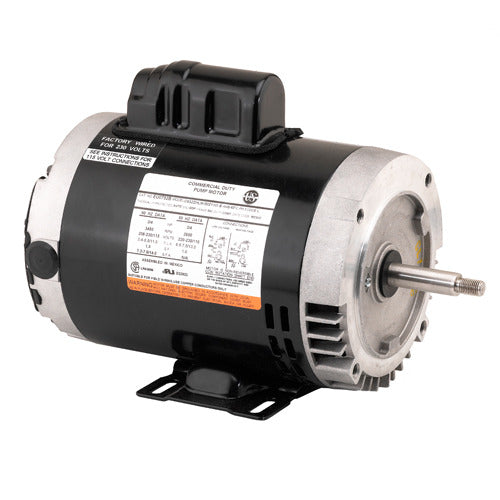

U.S. Motors EU0752B General Purpose Single Phase ODP J-Face/Rem Base Motor

Product Description

The U.S. Motors EU0752B is a reliable general purpose single phase motor. This motor is designed for various applications, providing consistent and dependable performance in many settings. It features a rating of three fourths horsepower at a speed of three thousand six hundred rotations per minute.

• Continuous duty performance
• Equipped for 115/208-230 voltage ratings
• ODP enclosure for optimal protection

Product Highlights

This motor is intended for general purpose applications, including pumps, and includes features designed for efficiency and durability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU0752B

Technical Specifications

• Duty: Continuous Duty
• Poles: 2
• Phase: Single Phase
• Hz: 60 Hz, 50/60 Hz
• Full Load rpm: 2850 rpm, 3450 rpm
• Full Load Amps: 11/5.4-5.5
• Frame: 56, 56J
• Thermal Protection: Automatic Reset
• HP: 3/4
• RPM: 3600 rpm
• Service Factor: 1.51
• Motor Application: General Purpose, Pump Motor
• Voltage Rating: 230, 115, 110, 220, 208, 115/208-230 & 110/220
• Enclosure Designation: ODP - Open Drip Proof
• Insulation: B
• C Dimension: 12.1 in
• Mounting: J-Face, J-Face/Rem Base
• Weight: 19.0 LB
• EAN or UPC: 786382053994
