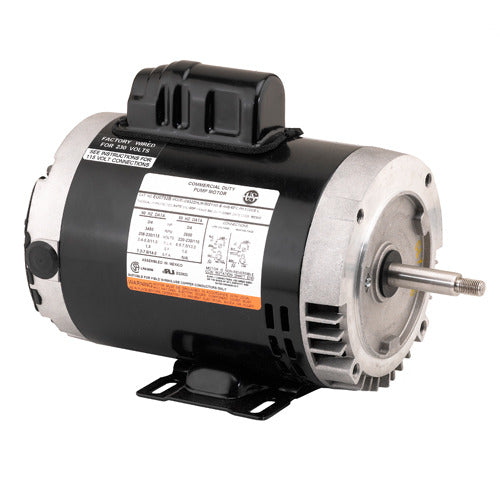

U.S. Motors EU0504 General Purpose Single Phase ODP J-Face/Base Motor

Product Description

The U.S. Motors EU0504 is a reliable general-purpose single-phase motor designed for various applications. With a power rating of one-half horsepower and capable of 1800 RPM operation, this motor is built to meet the demands of everyday tasks.

• 1/2 horsepower
• Continuous duty rating
• ODP enclosure for protection against environmental factors

Product Highlights

This motor efficiently runs on 60 Hz and is compatible with voltage ratings of 115, 208, and 230 volts. It is suitable for use in pump applications and other motor-driven machines.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU0504

Technical Specifications

• HP: 1/2
• Voltage Rating: 115/208-230
• Full Load RPM: 1800
• Full Load Amps: 8.9/4.4-4.5
• C Dimension: 10.8 inches
• Duty: Continuous Duty
• Frame: 56, 56J
• Enclosure: ODP - Open Drip Proof
