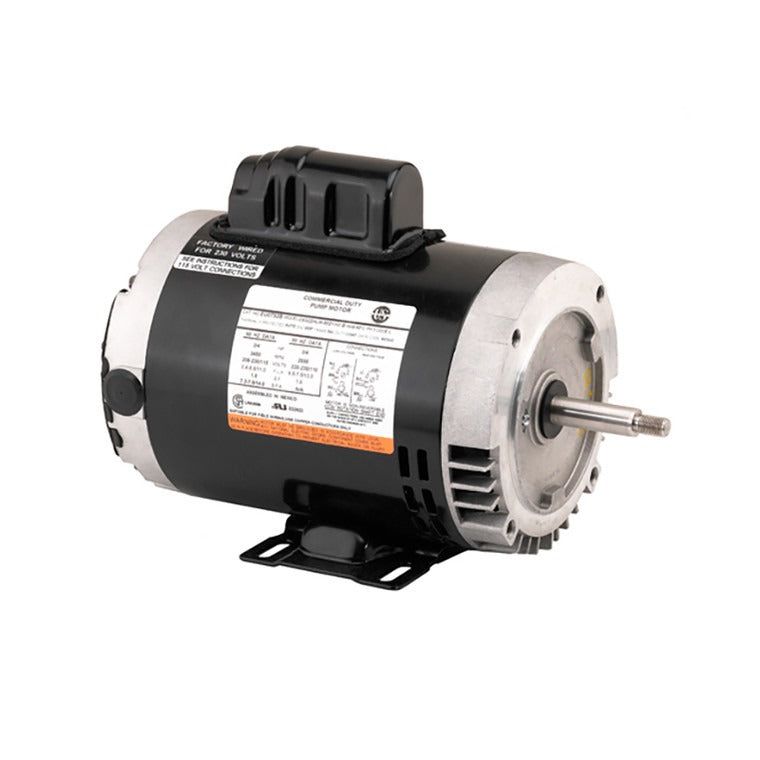

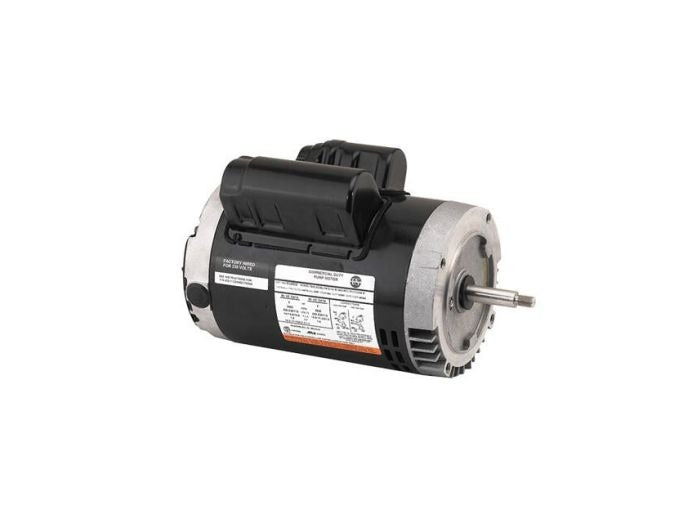

U.S. Motors EU0334 General Purpose Single Phase ODP J-Face/Base Motor

Product Description

The U.S. Motors EU0334 is a general-purpose single-phase motor designed for various applications. This motor operates at one-third horsepower and reaches a speed of one thousand eight hundred revolutions per minute. It features an open drip proof (ODP) enclosure, making it suitable for indoor use where some moisture may be present. It supports dual voltage ratings of one hundred fifteen or two hundred eight to two hundred thirty volts, providing flexibility for different electrical setups.

• 1/3 horsepower motor
• Continuous duty operation
• ODP enclosure for moisture protection

Product Highlights

This motor is ideal for general purpose and pump applications. It is designed to withstand continuous operations with automatic thermal protection. The J-face/base mounting style allows for easy installation in various systems.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 102198072

Technical Specifications

• HP: 1/3
• Hz: 60 Hz
• RPM: 1800 rpm
• Duty: Continuous Duty
• Frame: 56, 56J
• Phase: Single Phase
• Poles: 4
• Weight: 20.0 LB
• Mounting: J-Face, J-Face/Base
• Enclosure Designation: ODP - Open Drip Proof
• Voltage Rating: 115/208-230, 230, 115, 208
• Full Load Amps: 7.5/3.6-3.8
• Service Factor: 1.35
• Thermal Protection: Automatic Reset
• C Dimension: 10.6 in
• Insulation: B
• Motor Application: General Purpose, Pump Motor
• Full Load rpm: 1725 rpm
