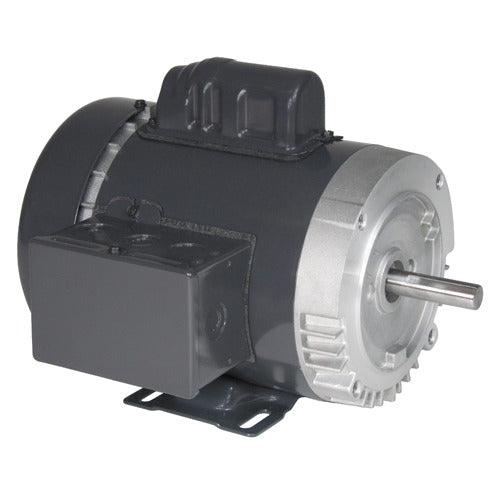

U.S. Motors EU03 General Purpose Single Phase TEFC J-Face/Rem Base Motor

Product Description

The U.S. Motors EU03 is a general purpose single phase motor designed for versatile use in various applications. This model features a compact J-face mounting that allows for easy installation. With a power rating of one half horsepower and a speed of three thousand six hundred RPM, it is suitable for many common tasks.

• Operating Voltage: 115/208-230 & 110/220
• TEFC Enclosure for protection against dust and moisture
• Automatic reset thermal protection for enhanced longevity

Product Highlights

The EU03 motor is built for continuous duty applications. Its robust design and reliable performance make it ideal in HVAC systems, fans, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU03

Technical Specifications

• Frame Size: 56, 56J
• Full Load RPM: 3600 RPM
• Voltage Rating: 115/208-230 & 110/220
• Thermal Protection: Automatic Reset
• Enclosure Type: TEFC
• Full Load Amps: 7.8/4.1-3.9
• Weight: 24.0 lbs
• Service Factor: 1.15
• Poles: 2
