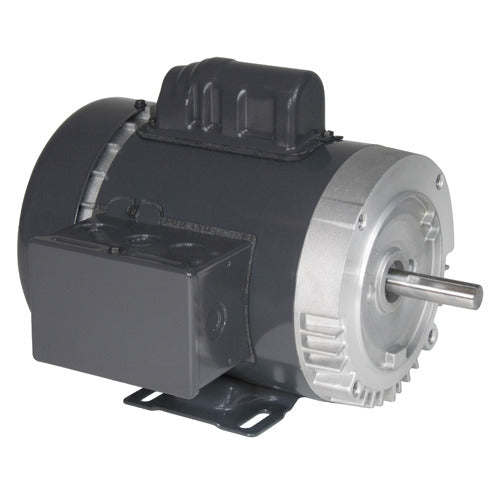

U.S. Motors EU01 General Purpose Single Phase TEFC J-Face/Rem Base Motor

Product Description

The U.S. Motors EU01 is a general purpose single-phase motor designed for various applications. It has a horsepower rating of one-third and operates at a speed of three thousand six hundred RPM. This motor's TEFC configuration ensures efficient operation in diverse conditions.

• 1/3 horsepower
• Available in single-phase operation
• Suitable for mounting on J-Face or Rem Base

Product Highlights

This motor is ideal for applications requiring reliable power output with a compact design. It is constructed to operate continuously under normal conditions, making it perfect for HVAC and industrial tasks.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EU01

Technical Specifications

• Horsepower: 1/3
• Voltage Rating: 115/208-230 and 110/220
• Frequency: 50/60 Hz
• RPM: 3600
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frame Size: 56J
• Full Load Amps: 6.6/3.2-3.3
• Weight: 23.0 lb
