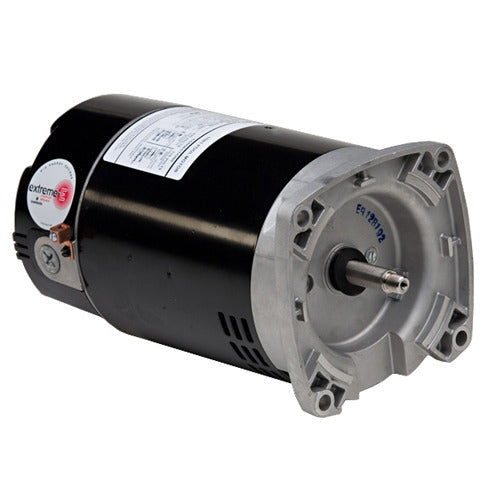

U.S. Motors ET3207 Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors ET3207 is a Definite Purpose Single Phase Open Drip Proof (ODP) Square Flange Motor designed for reliable performance in various applications. This motor has a power rating of three-fourths horsepower and operates at three thousand six hundred RPM. It is suitable for use in environments that require efficient cooling and ventilation.

• Voltage rating of two hundred eight to two hundred thirty or one hundred fifteen volts
• Continuous duty operation with ODP enclosure
• Designed with a 56Y frame for standard mounting

Product Highlights

This motor is ideal for HVAC systems, fans, and pumps where durability and longevity are essential.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ET3207

Technical Specifications

• Voltage Rating: 208-230/115
• Full Load RPM: 3450
• Frame: 56Y
• Enclosure Designation: ODP - Open Drip Proof
• Service Factor: 1.85
• Weight: 17.0 LB
• Poles: 2
• Duty: Continuous Duty
