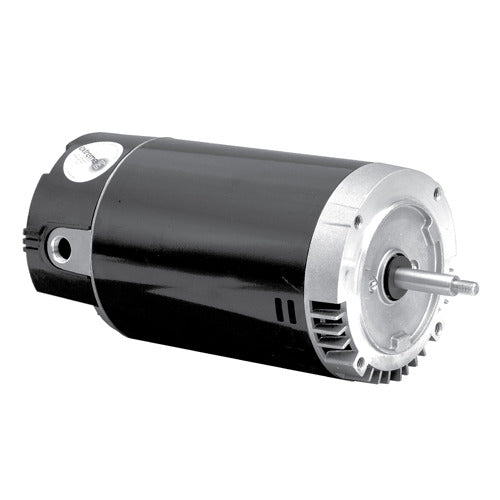

U.S. Motors ESN1102 Definite Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors ESN1102 is a definite purpose single phase ODP C-Face motor, widely used in various applications requiring reliable performance. This motor has a power of one horsepower and operates at a speed of three thousand six hundred revolutions per minute. It is designed to work on a voltage rating of two hundred eight to two hundred thirty or one hundred fifteen volts in a sixty hertz frequency. The C-Face mounting enables easy installation.

• Power: 1 hp
• Speed: 3600 rpm
• Frame: 56J

Product Highlights

This motor features an open drip-proof enclosure suitable for various environments. It includes automatic reset thermal protection to ensure reliable operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ESN1102

Technical Specifications

• Insulation: B
• Poles: 2
• Full Load RPM: 3450 rpm
• Thermal Protection: Automatic Reset
• Mounting: C-Face
• Enclosure: ODP
• Voltage Rating: 208-230/115
• Service Factor: 1.85
• Weight: 17.0 LB
