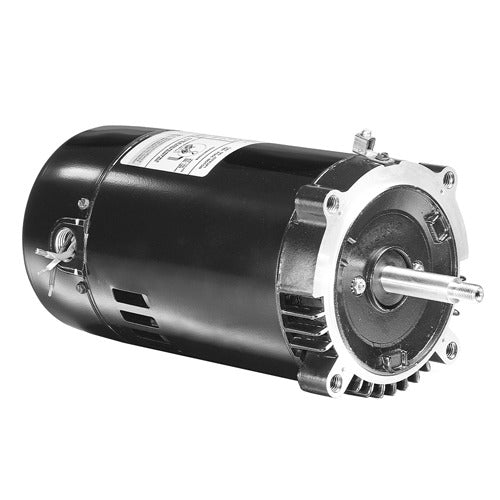

U.S. Motors EQC1102 Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors EQC1102 is a definite purpose single phase motor designed for reliable performance in various applications. This motor is suitable for use in pumps and other equipment that require effective power delivery. It operates at one horsepower and can achieve a maximum speed of up to three thousand six hundred revolutions per minute.

• Rated at one horsepower
• Operates at sixty hertz
• Equipped with an open drip-proof enclosure

Product Highlights

Ideal for pump motor applications, the EQC1102 provides continuous duty operation and thermal protection, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EQC1102

Technical Specifications

• HP: 1
• Voltage Rating: 230, 115, 230/115
• RPM: 3600
• Frame: 48, 48Y
• Service Factor: 1.65
• Poles: 2
• Full Load Amps: 5.53
• Duty: Continuous Duty
• Enclosure: ODP - Open Drip Proof
• Thermal Protection: Automatic Reset
• Mounting: Square Flange
• C Dimension: 12.7
• Weight: 27.0 LB
