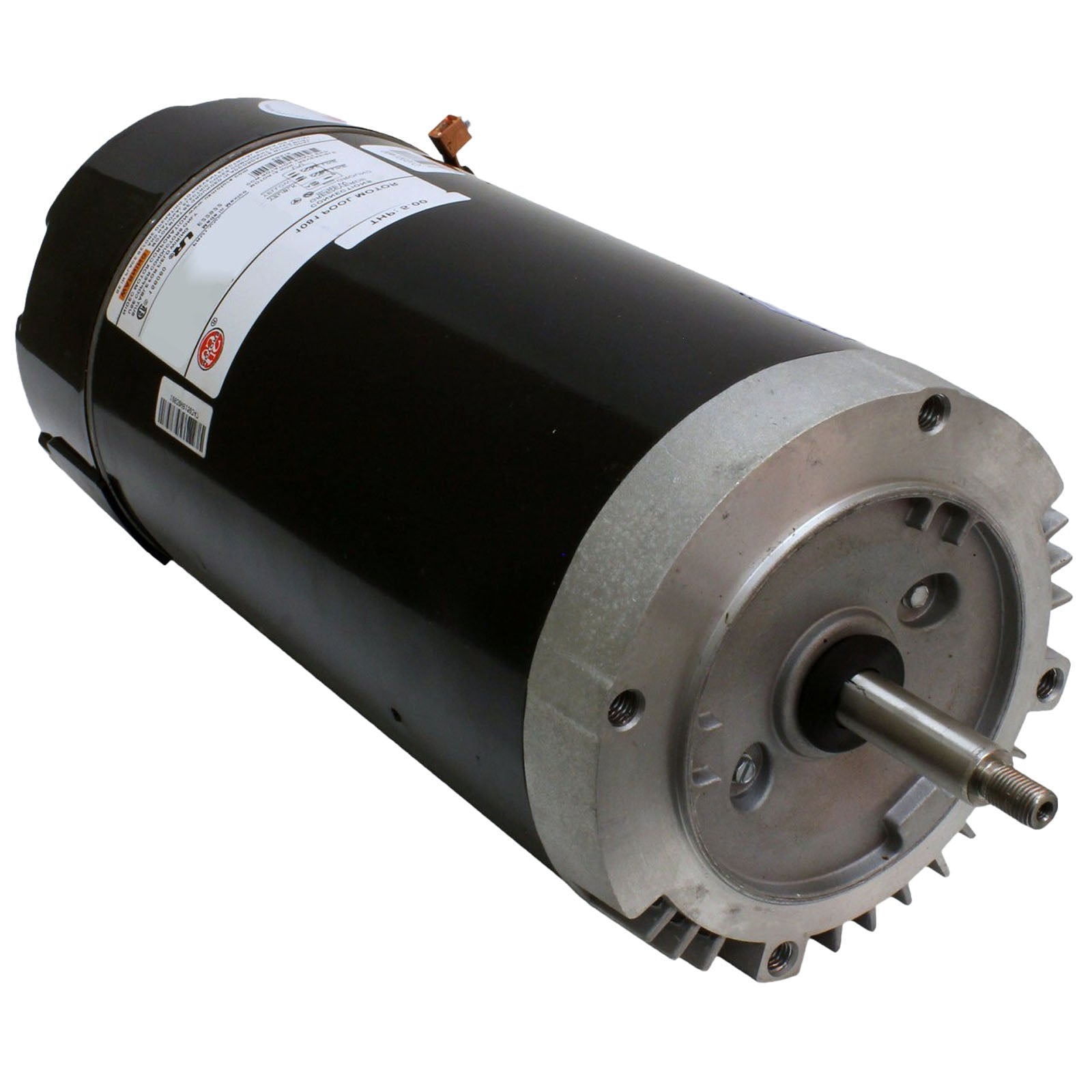

U.S. Motors EH282 Definite Purpose Three Phase ODP C-Face Motor

Product Description

The U.S. Motors EH282 is a Definite Purpose Three Phase ODP C-Face Motor. This motor is designed for reliable operation in various applications, providing a power rating of one half horsepower. It operates at a speed of three thousand six hundred RPM. The motor is suitable for continuous duty and is rated for both fifty and sixty hertz. It has a voltage rating of two hundred eight to two hundred thirty/ four sixty volts, making it versatile for different setups.

• Continuous Duty Rated
• Open Drip Proof Enclosure
• C-Face Mounting Design

Product Highlights

This motor is ideal for pump applications and other definite purpose uses. The robust design features an open drip proof enclosure that protects the internal components while ensuring efficient airflow.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EH282

Technical Specifications

• Horsepower: 1/2
• RPM: 3600
• Duty: Continuous Duty
• Frequency: 60 Hz, 50/60 Hz
• C Dimension: 11.1 inches
• Full Load Amps: 0
• Mounting: C-Face - Less Base
• Frame: 56, 56C, 56J
• Poles: 2
• Voltage Rating: 208-230/460
• Phase: Three Phase
• Enclosure: ODP
• Service Factor: 1.6
• Weight: 22.0 LB
