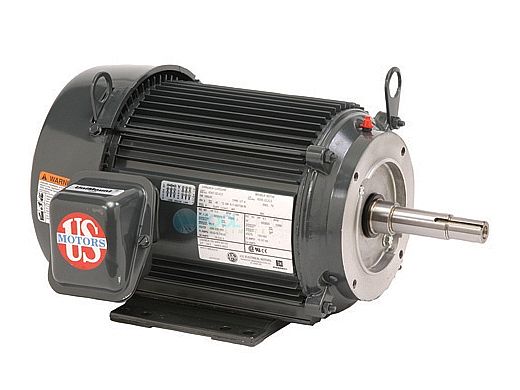

U.S. Motors EEQ750 Definite Purpose Single Phase ODP Motor

Product Description

The U.S. Motors EEQ750 is a definite-purpose single-phase ODP motor designed for reliable performance. It operates at seven and a half horsepower, with a full load speed of three thousand six hundred RPM. This motor is suitable for various applications, including pool and spa motors. Its design is built to last and provides continuous duty performance.

• Powerful seven and a half horsepower
• Open drip proof enclosure for reliable cooling
• 230 voltage rating for versatile use

Product Highlights

This motor offers various features suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EEQ750

Technical Specifications

• Motor Application: Definite Purpose
• Frame: 213JMZ
• C Dimension: 20.3 inches
• Hz: 60 Hz
• Phase: Single Phase
• Voltage Rating: 230
• Poles: 2
• Enclosure Designation: ODP - Open Drip Proof
• Full Load RPM: 3480 RPM
• Insulation: F
• Service Factor: 1.15
• Duty: Continuous Duty
• Full Load Amps: 30.4
• Frame Material: Rolled Steel
• Full Load Efficiency: 87%
• Weight: 82.5 LB
• EAN or UPC: 786382097042
