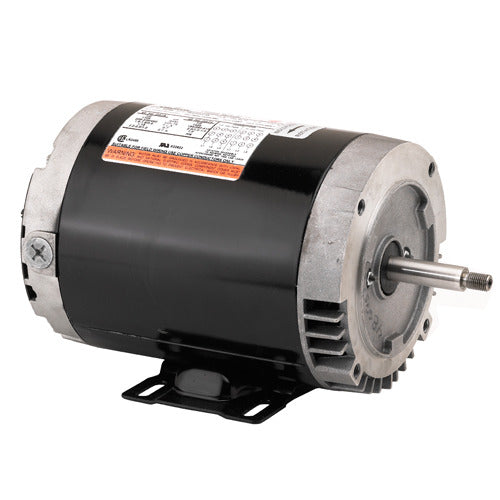

U.S. Motors EE833B General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors EE833B is a general purpose three phase ODP horizontal footed motor designed for a variety of applications. This motor operates at five horsepower and provides a speed of three thousand six hundred RPM, making it suitable for tasks requiring high efficiency and reliability.

• Continuous duty cycle for long-term operation
• Open drip proof (ODP) enclosure for protection
• Vertical or horizontal footed mounting options

Product Highlights

This motor offers versatility for commercial and industrial use. Its robust design ensures durability and effective performance in various environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EE833B
• Part Number: 110672010
• Minimum Order Quantity: 1

Technical Specifications

• Frequency: 50/60 Hz
• Duty: Continuous Duty
• Frame Size: 56J
• Motor Application: General Purpose
• RPM: 3600
• Enclosure Designation: ODP - Open Drip Proof
• Phase: Three Phase
• Mounting Configuration: Horizontal - Footed
• Insulation Class: F
• Poles: 2
• Full Load Amps: 13.1-11.8/5.9
• Enclosure Type: ODP
• Service Factor: 1
• Full Load Efficiency: 88.5%
• Voltage Rating: 208-230/460 and 190/380
• Weight: 35.0 lbs
• EAN: 786382100476
