U.S. Motors EE734B General Purpose Three Phase ODP C-Face/Base Motor

Product Description

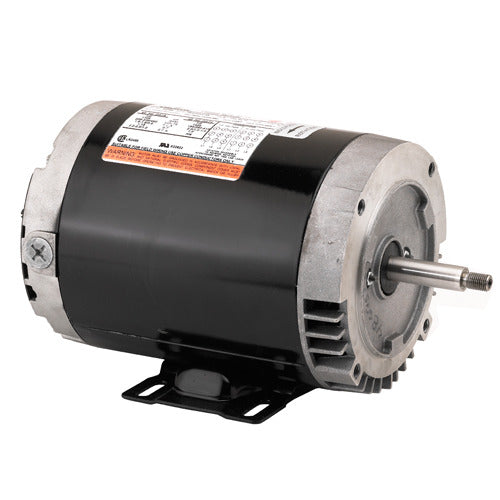

The U.S. Motors EE734B is a robust general-purpose motor designed for three-phase operation. This motor is ideal for applications requiring reliable power at high speeds. The EE734B operates at three horsepower (HP) and maintains a speed of three thousand six hundred revolutions per minute (RPM). This motor features an open drip-proof (ODP) enclosure designed for cooling and efficient heat dissipation.

• Three-phase power design for effective performance
• Robust open drip-proof enclosure for operational reliability
• Standard horizontal C-face/base mounting for versatile installation

Product Highlights

This motor is suitable for a wide range of industrial applications including pumps, fans, and compressors. It is designed for continuous duty and ensures consistent performance. The EE734B is compliant with standard electrical regulations.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EE734B

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Phase: Three Phase
• Voltage Rating: 208-230/460
• HP: 3
• RPM: 3600
• C Dimension: 13.8 in
• Frame: 56
• Weight: 35.0 LB
