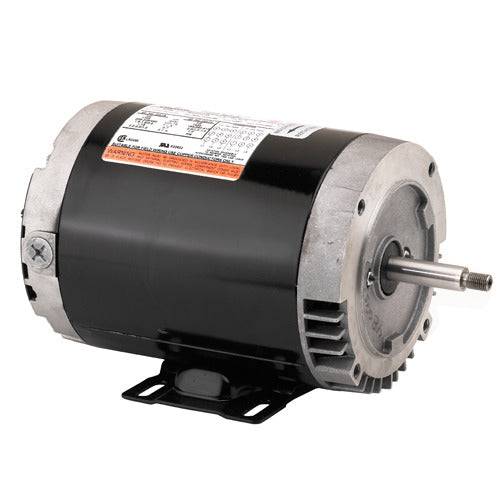

U.S. Motors EE609 General Purpose Three Phase ODP Horizontal - Footless Motor

Product Description

The U.S. Motors EE609 is a general purpose three-phase motor designed for various applications. This motor operates at one and a half horsepower and achieves speeds of three thousand six hundred rpm. It is suitable for setups requiring a horizontal footless mounting configuration.

• Power: 1 1/2 horsepower
• Designed for continuous duty applications
• Voltage ratings: 208-230/460 and 190/380

Product Highlights

This motor features an open drip-proof enclosure, making it suitable for indoor use where moisture and dust are minimal. The 56C frame design supports versatility in mounting and applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EE609

Technical Specifications

• Phase: Three
• Voltage Rating: 460, 230, 380, 415, 208
• Insulation: F
• Design: B
• Hz: 60 Hz, 50/60 Hz
• Poles: 2
• RPM: 3600
• Frame: 56, 56C
• Enclosure Designation: ODP - Open Drip Proof
• Mounting: Horizontal Mount
• Full Load Efficiency: 82.5%
• Service Factor: 1
• Full Load Amps: 4.4-4.3/2.2
• Duty: Continuous Duty
• Weight: 27.0 lb
• EAN or UPC: 786382050849
