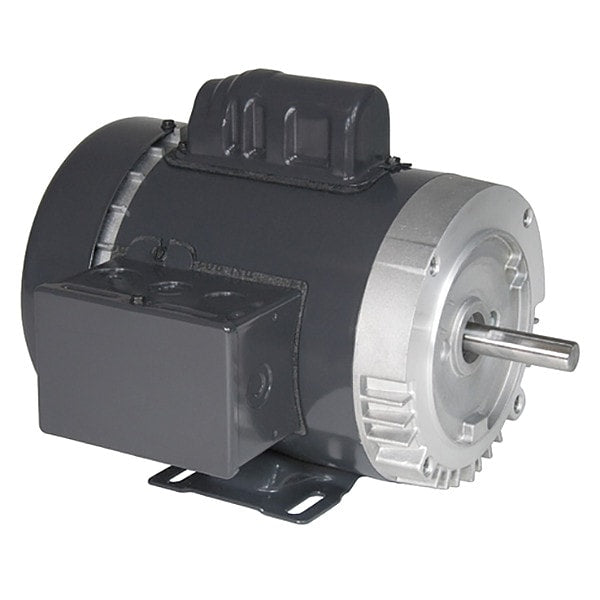

U.S. Motors EC09B General Purpose Single Phase TEFC C-Face/Base Motor

Product Description

The U.S. Motors EC09B is a general-purpose motor designed for a variety of applications. This single-phase, totally enclosed fan cooled (TEFC) motor operates at one horsepower and features a speed of three thousand six hundred RPM. It is built with a C-face mount and 56C frame.

• Single-phase operation
• Voltage rating options include 115, 208, 230, and 110
• Designed for continuous duty

Product Highlights

This motor is suitable for various applications requiring reliable performance and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EC09B

Technical Specifications

• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Service Factor: 1.15
• Poles: 2
• Hz: 60 Hz, 50/60 Hz
• RPM: 3600 rpm
• Full Load Amps: 12.8/6.6-6.4
• Frame Size: 56C
• Voltage Rating: 230, 115, 110, 220, 208, 115/208-230 & 110/220
• Thermal Protection: Automatic Reset
• Insulation: B
• C Dimension: 12.1
• Weight: 29.0 lb
• EAN or UPC: 786382053611
