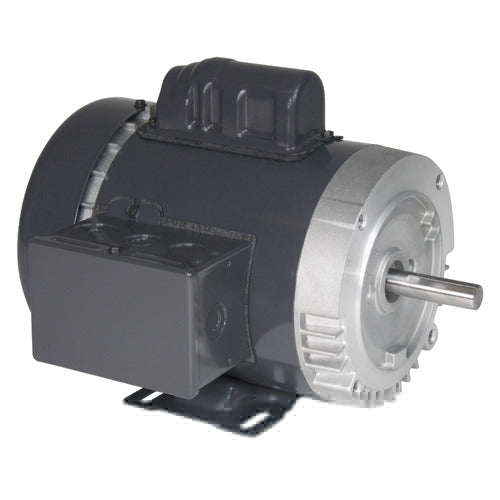

U.S. Motors EC06 General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors EC06 is a reliable general-purpose motor designed for single-phase applications. This motor features a horsepower rating of three-fourths and operates at a speed of three thousand six hundred RPM. It is ideal for various applications, including pumps and other general tasks. This motor has a TEFC (Totally Enclosed Fan Cooled) enclosure, which protects it from dust and moisture while ensuring effective cooling. It is suitable for use with multiple voltage ratings including one hundred fifteen and two hundred thirty volts.

• Power: 3/4 HP
• Speed: 3600 RPM
• Enclosure: TEFC

Product Highlights

The EC06 motor is advantageous for professionals needing a sturdy and efficient motor.

Product Information

Standard Information

• Motor Application: General Purpose, Pump Motor
• Frame Size: 56C

Technical Specifications

• Service Factor: 1.15
• Mounting: C-Face - Less Base
• C Dimension: 11.8 inches
• Phase: Single Phase
• Voltage Rating: 115/208-230
• Full Load Amps: 10/5.2-5
• Weight: 26.0 LB
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
