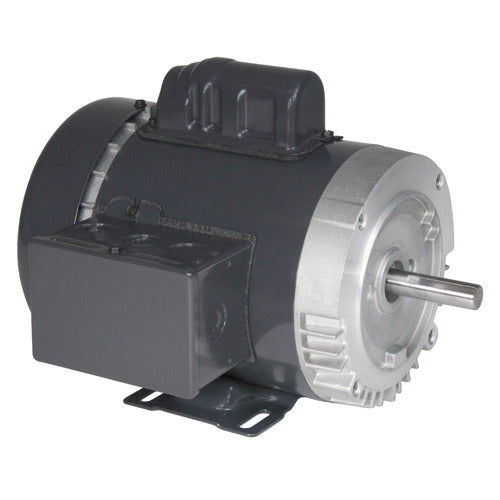

U.S. Motors EC03B General Purpose Single Phase TEFC C-Face/Base Motor

Product Description

The U.S. Motors EC03B is a general-purpose motor designed for various applications. This single-phase motor operates at 3600 RPM and features a TEFC enclosure that ensures durability. Ideal for HVAC and industrial applications, this model can handle various voltage ratings including 115, 208, 230, and 110/220.

• 1/2 HP motor suitable for many tasks.
• Continuous duty with automatic reset thermal protection.
• C-Face base mounting for easy installation.

Product Highlights

This motor effectively manages power settings and provides reliable operation for different uses, ensuring performance in critical tasks.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EC03B

Technical Specifications

• HP: 1/2
• RPM: 3600
• Phase: Single Phase
• Enclosure: TEFC
• Frame: 56C
• Poles: 2
• Full Load RPM: 2850, 3450
• Voltage Rating: 115/208-230, 110/220
• Service Factor: 1.15
• C Dimension: 11.3 inches
• Weight: 24.0 lbs
