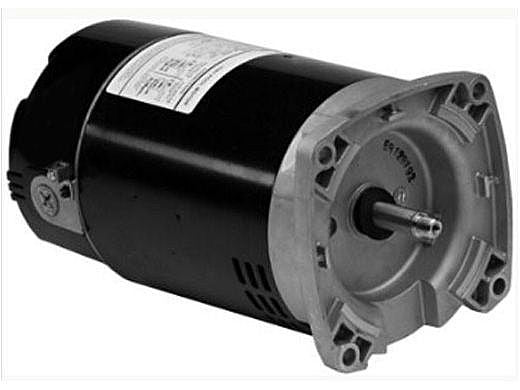

U.S. Motors EB980 Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors EB980 is an effective single-phase ODP square flange motor. It is designed for definite purpose applications, delivering reliability in operation. Ideal for pool and spa installations, this motor is built with advanced features to support its performance.

• Handles a variety of applications including pump motors.
• Compact design fits standard installations.
• Durable construction for lasting performance.

Product Highlights

This motor operates efficiently and meets various installation needs.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EB980

Technical Specifications

• C Dimension: 12.7 inches
• Full Load Amps: 3.56
• Frequency: 60 Hz
• Poles: 2/4
• Motor Application: Pump Motor, Definite Purpose
• RPM: 3600 rpm, 1800 rpm
• Frame: 56, 56Y
• Drive End Bearing: 6203
• Full Load RPM: 1725 rpm, 3450 rpm
• Duty: Continuous Duty
• Thermal Protection: Automatic Reset
• Voltage Rating: 230
• Phase: Single Phase
• Mounting: Square Flange
• Enclosure: ODP
• Insulation: B
• Open End Bearing: 6203
• Weight: 24.0 LB
• EAN or UPC: 786382051488
