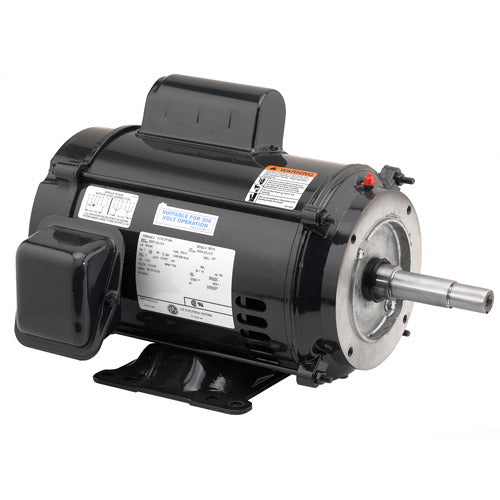

U.S. Motors DJ7C1K21P Close Coupled Pump Motor Single Phase ODP Motor

Product Description

The U.S. Motors DJ7C1K21P is a close coupled pump motor designed for various pumping applications. This single-phase ODP motor operates at a powerful seven and a half horsepower, ensuring efficient performance in demanding conditions.

• Operating Speed: 3600 RPM
• Voltage Rating: 230 Volts
• Durable ODP Enclosure

Product Highlights

This motor features a reliable design suitable for continuous duty. Its robust construction makes it ideal for repeated use in pump systems that require efficiency and durability.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: DJ7C1K21P

Technical Specifications

• Frame: 213JP, 213
• Insulation: F
• Mounting: Horizontal Mount
• Enclosure Designation: ODP - Open Drip Proof
• Motor Application: Pump Motor
• Poles: 2
• Service Factor: 1.15
• Full Load Amps: 30.4
• Weight: 141.0 LB
• Drive End Bearing: SLEEVE
• Open End Bearing: SLEEVE
• Full Load RPM: 3480 RPM
• C Dimension: 24 1/2 in
• Frame Material: Rolled Steel
• Voltage Rating: 230
• Duty: Continuous Duty
• Design: L
