U.S. Motors DJ5P3DM Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Product Description

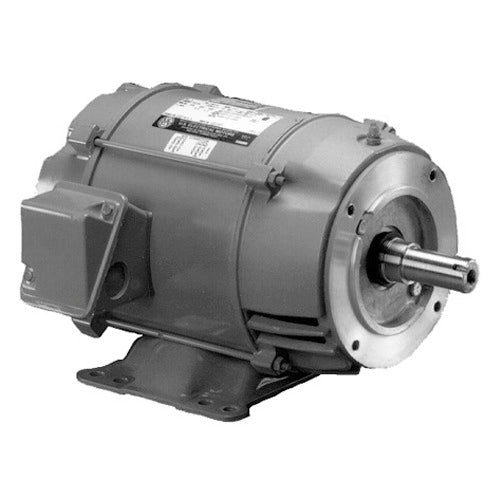

The U.S. Motors DJ5P3DM is a three-phase, close-coupled pump motor designed for reliable performance in various pumping applications. With a power rating of five horsepower and a speed of twelve hundred RPM, this motor is suitable for both residential and commercial environments.

• Designed for continuous duty operation
• Open Drip Proof (ODP) enclosure to protect from dust and moisture
• Compatible with multiple voltage ratings for flexible installation

Product Highlights

This motor features a 215JM frame and operates at both 50 and 60 Hz. Its versatile voltage ratings of 208-230/460 and 190/380 make it a great choice for different electrical systems. The design ensures efficient performance in pumping systems, making it a reliable solution for HVAC and industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: DJ5P3DM

Technical Specifications

• Phase: Three Phase
• Full Load RPM: 1200 RPM
• Service Factor: 1.15
• Voltage Rating: 208-230/460 & 190/380
• Weight: 105.0 LB
• Enclosure: ODP
• Frame: 215JM
• Full Load Amps: 15.2-14.5/7.3
