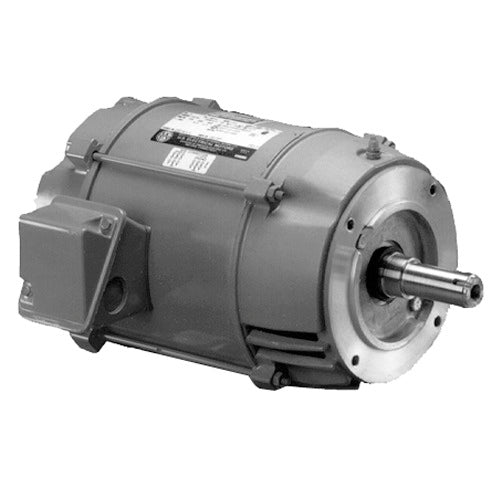

U.S. Motors DJ5P2DU Close Coupled Pump Motor Three Phase ODP Horizontal - Footless Motor

Product Description

The U.S. Motors DJ5P2DU is a close coupled pump motor designed for efficient operation in various industrial and commercial applications. This three-phase, footless motor features an ODP enclosure, making it suitable for environments where moisture is present but not directly exposed to water. It operates at 1800 RPM, allowing for optimal performance across a range of pumping tasks.

• Rated power of five horsepower
• Voltage ratings include 208-230/460 and 190/380
• Continuous duty operation ensures reliability

Product Highlights

This motor is ideal for pumping applications where high efficiency and reliable performance are critical. It provides significant versatility with its horizontal mounting design.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: DJ5P2DU

Technical Specifications

• Full Load RPM: 1800 RPM
• Enclosure Type: ODP - Open Drip Proof
• Phase: Three Phase
• Frame Size: 184JM
• Full Load Amps: 13.7-12.4/6.2
• Weight: 60.0 LB
• Voltage Rating: 208-230/460 & 190/380
• Efficiency: 89.5 %
• Duty Type: Continuous Duty
• Poles: 4
