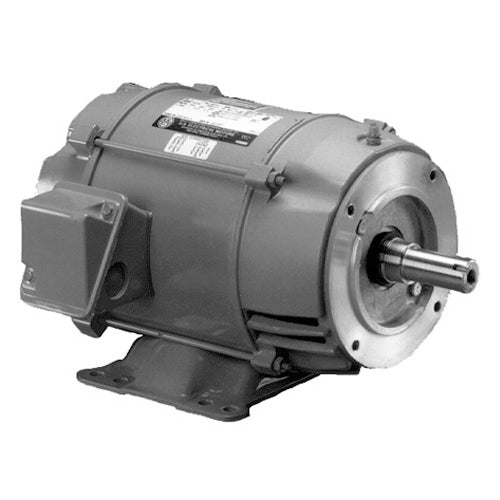

U.S. Motors DJ5P1HM Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors DJ5P1HM is a robust three-phase close coupled pump motor designed for efficient performance in various pump applications. This motor operates at five horsepower and features an open drip-proof (ODP) enclosure, making it ideal for demanding conditions. Its horizontal and footed mounting type ensures stable installation in various configurations.

• Voltage Rating: 200 V
• Full Load RPM: 3600
• Continuous Duty

Product Highlights

This motor is engineered for reliability in pump services, achieving high efficiency and low operational costs.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: DJ5P1HM

Technical Specifications

• Voltage Rating: 200 V
• Duty: Continuous Duty
• Full Load RPM: 3600
• Service Factor: 1.15
• Full Load Efficiency: 88.5%
• Phase: Three Phase
• Frame: 182JM
• Amps: 14.1
• Enclosure Type: ODP
• Mounting: Horizontal - Footed
• Insulation Class: F
• Weight: 50 LB
